Cable Pits for MRWA

ACO make two specialised cable pits to meet the requirements of Specification 704 of MAIN ROADS Western Australia – Cable Conduits & Pits for Intelligent Transport Systems (ITS)

A choice is offered between either a rigid plastic twin wall pit or a cement concrete pit. In most applications, concrete backfill is not required.

Both pits are supplied complete with a galvanised steel lid and dependent on pit structure, is secured with ACO’s patented PowerLok® or PITLOK® lid system.

For security for sensitive areas, both can accommodate MRWA’s Type 234 padlock.

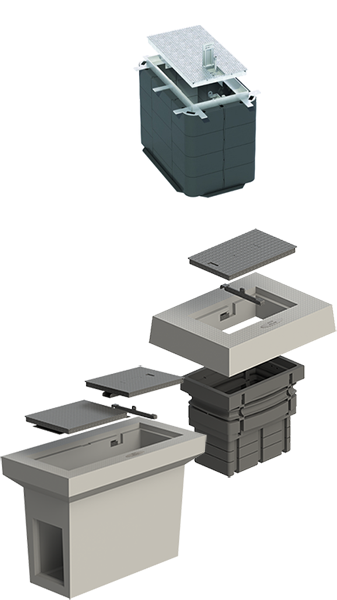

mrwa pits

MRWA Parts list

MRWA EzyBrixx® plastic pits
Part No. Description Size (L x W (x D))
142806 MRWA 5 EzyBrixx® plastic pit 600 x 300 (x 600)
142398 MRWA 5 Lid & Frame To suit
142807 MRWA 8 EzyBrixx® plastic pit 1200 x 500 (x 900)
142399 MRWA 8 Lid & Frame To suit
MRWA PITLOK® enclosures

MRWA 5 PITLOK®
Part No. Description Size (L x W (x D))
142263 MRWA/WP 5 PITLOK® concrete full body pit 600 x 340 (x780)
142264 MRWA/WP 5 PITLOK® concrete split body pit 600 x 340 (x780)
142235 PlinthP5 – concrete plinth 1000 x 750
7604299 Type 5 polyethylene pit To suit plinth
142915 MRWA/WP 5 Lid To suit plinth & concrete pit

MRWA 8 PITLOK®
Part No. Description Size (L x W (x D))
142267 MRWA/WP 8 PITLOK® concrete full body pit 1250 x 440 (x910)
142268 MRWA/WP 8 PITLOK® concrete split body pit 1250 x 440 (x910)
142236 PlinthP8 – concrete plinth 1675 x 870
75019 Type 8 polyethylene pit To suit plinth
142916 MRWA/WP 8 Lid To suit plinth & concrete pit

MRWA 10 PITLOK®
Part No. Description Size (L x W (x D))
142267 MRWA/WP 10 PITLOK® concrete full body pit 1905 x 440 (x920) mm
142268 MRWA/WP 10 PITLOK® concrete split body pit 1905 x 440 (x920) mm

MRWA non-locking enclosures

MRWA 4 PITLOK®
Part No. Description Size (L x W (x D))
142934 P4 MRWA Electrical plinth, lid & plastic pit 570 x 275 x 950 mm
142930 P4 MRWA Electrical concrete lid
142929 P4 Plinth MRWA

MRWA 6/8 PITLOK®
Part No. Description Size (L x W (x D))
142935 P8 MRWA Electrical plinth, lid & plastic pit 1250 x 440 x 1040 mm
142933 P6/8 MRWA Electrical 2-part lid and support bar
142932 P6/8 MRWA Electrical concrete lid
142931 P6/8 Plinth MRWA

For more info contact Ben Williams
Ph.: 08 6250 3700
Mob. 0411 693 003
