EzyBrixx®

EzyBrixx® is a range of modular rigid (twin wall) plastic pits comprising an innovative interlocking wedge system. EzyBrixx® pits are capable of withstanding wheel loads and in most cases a concrete backfill is not required. Components are made from 100% recycled polypropylene and are configured in 150mm high stacking units to create a lightweight and easy to install pit of any depth.

The EzyBrixx® modular units allows for customised sizes and delivered preassembled to site.

EzyBrixx® - features & benefits

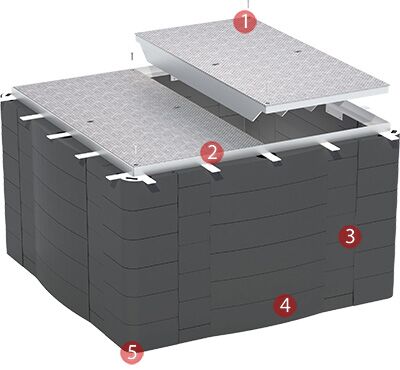

EzyBrixx Twin Wall Pits
1Standard locking lid secured with 2 x M8 locking bolts into the frame. Universal plugs allows lids to meet IP rating: IP4X AS 60529
2All frames are secured to the pit wall
3Pit components interlock through a unique wedge interlock to provide a rigid and secure wall.
4Conduits can be create onsite with a holesaw.
5An optional plastic base, stepladders and cable supports can be supplied fitted to the pits.
Parts list

EzyBrixx® range parts list

EzyBrixx® - 600mm x 600mm

EzyBrixx Pits (for lids)
Descriptions/Dimensions (mm) Part No Weight (kg) Cover config
EzyBrixx Pit - 600 x 600 x (600 deep) 142528 23
EzyBrixx Pit - 600 x 600 x (600 deep) with base 142646 27
EzyBrixx Pit - 600 x 600 x (900 deep) 142529 34
EzyBrixx Pit - 600 x 600 x (900 deep) with base 142647 38
EzyBrixx Riser (supplied loose) - 600 x 600 x 150 142582 6

EzyBrixx Pits (for access covers)
Descriptions/Dimensions (mm) Part No Weight (kg) Cover config
EzyBrixx Pit for Access Cover - 600 x 600 x (600 deep) 143082 28
EzyBrixx Pit for Access Cover - 600 x 600 x (600 deep) with base 143083 32
EzyBrixx Pit for Access Cover - 600 x 600 x (900 deep) 143084 39
EzyBrixx Pit for Access Cover - 600 x 600 x (900 deep) with base 143085 43
EzyBrixx Riser for Access Cover (supplied loose) - 600 x 600 x 150 143074 11

Lids
Descriptions/Dimensions (mm) Part No Weight (kg) Cover config
EzyBrixx Lid - 600 x 600 Class B steel bolt locking 142575 33 1 part cover
EzyBrixx Lid - 600 x 600 Class D steel bolt locking 142711 42 1 part cover

Access Covers
Descriptions/Dimensions (mm) Part No Weight (kg) Cover config
EzyBrixx Access Cover - 600 x 600 Class B Tilemate infill 81565 23 1 part cover
EzyBrixx Access Cover - 600 x 600 Class B Pavermate infill 81948 22 1 part cover
EzyBrixx Access Cover - 600 x 600 Class B Rhinocast infill 85045 63 1 part cover
EzyBrixx Access Cover - 600 x 600 Class B Rhinocast Solid Top 85222 62 1 part cover
EzyBrixx Access Cover - 600 x 600 Class C Rhinocast infill (reduced rib) 142314 102 1 part cover
EzyBrixx Access Cover - 600 x 600 Class D Rhinocast infill 89041 116 1 part cover
EzyBrixx Access Cover - 600 x 600 Class D Rhinocast Solid Top 89235 122 1 part cover



PDF Spec Info

DWG Product Drawing

EzyBrixx® - 900mm x 900mm

EzyBrixx Pits (for lids)
Descriptions/Dimensions (mm) Part No Weight (kg) Cover config
EzyBrixx Pit - 900 x 900 x (900 deep) 142530 50
EzyBrixx Pit - 900 x 900 x (900 deep) with base 142648 55
EzyBrixx Pit - 900 x 900 x (1050 deep) 142606 58
EzyBrixx Pit - 900 x 900 x (1050 deep) with base 142649 63
EzyBrixx Pit - 900 x 900 x (1200 deep) 142531 66
EzyBrixx Pit - 900 x 900 x (1200 deep) with base 142650 71
EzyBrixx Riser (supplied loose) - 900 x 900 x 150 142583 91

EzyBrixx Pits (for access covers)
Descriptions/Dimensions (mm) Part No Weight (kg) Cover config
EzyBrixx Pit for Access Cover - 900 x 900 x (900 deep) 143086 58
EzyBrixx Pit for Access Cover - 900 x 900 x (900 deep) with base 143087 63
EzyBrixx Pit for Access Cover - 900 x 900 x (1050 deep) 143088 66
EzyBrixx Pit for Access Cover - 900 x 900 x (1050 deep) with base 143089 71
EzyBrixx Pit for Access Cover - 900 x 900 x (1200 deep) 143090 74
EzyBrixx Pit for Access Cover - 900 x 900 x (1200 deep) with base 143091 79
EzyBrixx Riser for Access Cover (supplied loose) - 900 x 900 x 150 143075 17

Lids
Descriptions/Dimensions (mm) Part No Weight (kg) Cover config
EzyBrixx Lid - 900 x 900 Class B steel bolt locking 142576 93 2 part cover
EzyBrixx Lid - 900 x 900 Class D steel bolt locking 142494 105 2 part cover

Access Covers
Descriptions/Dimensions (mm) Part No Weight (kg) Cover config
EzyBrixx Access Cover - 900 x 900 Class B Tilemate infill 81645 38 2 part cover
EzyBrixx Access Cover - 900 x 900 Class B Pavermate infill 81992 36 2 part cover
EzyBrixx Access Cover - 900 x 900 Class B Rhinocast infill 85093 114 2 part cover
EzyBrixx Access Cover - 900 x 900 Class C Rhinocast infill (reduced rib) 142316 102 1 part cover
EzyBrixx Access Cover - 900 x 900 Class D Rhinocast infill 89093 199 2 part cover
EzyBrixx Access Cover - 900 x 900 Class B Rhinocast Solid Top 89953 149 2 part cover
EzyBrixx Access Cover - 900 x 900 Class D Rhinocast Solid Top 89955 284 2 part cover



PDF Spec Info

DWG Product Drawing

EzyBrixx® - 1200mm x 1200mm

EzyBrixx Pits
Descriptions/Dimensions (mm) Part No Weight (kg) Cover config
EzyBrixx Pit - 1200 x 1200 x (900 deep) 142536 70
EzyBrixx Pit - 1200 x 1200 x (900 deep) with base 142677 82
EzyBrixx Pit - 1200 x 1200 x (1050 deep) 142607 82
EzyBrixx Pit - 1200 x 1200 x (1050 deep) with base 142678 94
EzyBrixx Pit - 1200 x 1200 x (1200 deep) 142537 94
EzyBrixx Pit - 1200 x 1200 x (1200 deep) with base 142679 106
EzyBrixx Pit - 1200 x 1200 x (1350 deep) 142608 106
EzyBrixx Pit - 1200 x 1200 x (1350 deep) with base 142680 118
EzyBrixx Pit - 1200 x 1200 x (1500 deep) 142609 118
EzyBrixx Pit - 1200 x 1200 x (1500 deep) with base 142681 130
EzyBrixx Riser (supplied loose) - 1200 x 1200 142584 12

Lids
Descriptions/Dimensions (mm) Part No Weight (kg) Cover config
EzyBrixx Lid - 1200 x 1200 Class B steel bolt locking 142577 148 2 part cover
EzyBrixx Lid - 1200 x 1200 Class D steel bolt locking 142496 185 2 part cover



PDF Spec Info

DWG Product Drawing

EzyBrixx® - 1500mm x 1500mm

EzyBrixx Pits
Descriptions/Dimensions (mm) Part No Weight (kg) Cover config
EzyBrixx Pit for lids only - 1500 x 1500 x (900 deep) 142538 106
EzyBrixx Pit for lids only - 1500 x 1500 x (1050 deep) 142540 119
EzyBrixx Pit for lids only - 1500 x 1500 x (1200 deep) 142542 132
EzyBrixx Pit for lids only - 1500 x 1500 x (1350 deep) 142612 146
EzyBrixx Pit for lids only - 1500 x 1500 x (1500 deep) 142614 228
EzyBrixx Base (supplied loose) - 1500 x 1500 142457 18.6

Lids
Descriptions/Dimensions (mm) Part No Weight (kg) Cover config
EzyBrixx Lid - 1500 x 1500 Class B steel bolt locking 142578 250 4 part cover
EzyBrixx Lid - 1500 x 1500 Class D steel bolt locking 142550 293 4 part cover



PDF Spec Info

DWG Product Drawing

EzyBrixx® - 1800mm x 1800mm

EzyBrixx Pits
Descriptions/Dimensions (mm) Part No Weight (kg) Cover config
EzyBrixx Pit for lids only - 1800 x 1800 x (900 deep) 142698 136
EzyBrixx Pit for lids only - 1800 x 1800 x (1050 deep) 142701 154
EzyBrixx Pit for lids only - 1800 x 1800 x (1200 deep) 142703 172
EzyBrixx Pit for lids only - 1800 x 1800 x (1350 deep)** 142616 190
EzyBrixx Pit for lids only - 1800 x 1800 x (1500 deep) 142618 311
EzyBrixx Pit for lids only - 1800 x 1800 x (1650 deep) 142620 339
EzyBrixx Pit for lids only - 1800 x 1800 x (1800 deep) 142622 367
EzyBrixx Base (supplied loose) - 1800 x 1800 142731 27

Lids
Descriptions/Dimensions (mm) Part No Weight (kg) Cover config
EzyBrixx Lid - 1800 x 1800 Class B steel bolt locking 142624 380 6 part cover
EzyBrixx Lid - 1800 x 1800 Class D steel bolt locking 142625 437 6 part cover



PDF Spec Info

DWG Product Drawing

EzyBrixx® - 2100mm x 2100mm

EzyBrixx Pits
Descriptions/Dimensions (mm) Part No Weight (kg) Cover config
EzyBrixx Pit for lids only - 2100 x 2100 x (900 deep) 142980 137
EzyBrixx Pit for lids only - 2100 x 2100 x (1050 deep) 142982 155
EzyBrixx Pit for lids only - 2100 x 2100 (1200 deep) 142984 174
EzyBrixx Pit for lids only - 2100 x 2100 x (1350 deep)** 142986 192
EzyBrixx Pit for lids only - 2100 x 2100 x (1500 deep) 142988 279
EzyBrixx Pit for lids only - 2100 x 2100 x (1650 deep) 142990 305
EzyBrixx Pit for lids only - 2100 x 2100 x (1800 deep) 142992 329
EzyBrixx Base (supplied loose) - 2100 x 2100 142994 22

Lids
Descriptions/Dimensions (mm) Part No Weight (kg) Cover config
EzyBrixx 2100mm x 2100mm steel bolt locking lids - Class B 142955 565 9 part cover
EzyBrixx 2100mm x 2100mm steel bolt locking lids - Class D 142956 743 9 part cover



PDF Spec Info

DWG Product Drawing

EzyBrixx® - 1350 x 600 x 900mm (Type 8)

EzyBrixx Pits (for lids)
Descriptions/Dimensions (mm) Part No Weight (kg) Cover config
EzyBrixx Pit for lids only - 1350 x 600 x (900 deep) 142651 66
EzyBrixx Pit for lids only - 1350 x 600 x (900 deep)with base 142652 76
EzyBrixx Base (supplied loose) - 1350 x 600 142655 10

EzyBrixx Pits (for access covers)
Descriptions/Dimensions (mm) Part No Weight (kg) Cover config
EzyBrixx Pit for Access Cover - 1350 x 600 x (900 deep) 143092 75
EzyBrixx Pit for Access Cover - 1350 x 600 x (900 deep)with base 143093 85
EzyBrixx Base (supplied loose) - 1350 x 600 142655 10

Lids
Descriptions/Dimensions (mm) Part No Weight (kg) Cover config
EzyBrixx Lid - 1350 x 600 Class B steel bolt locking 142656 80 2 part cover
EzyBrixx Lid - 1350 x 600 Class D steel bolt locking 142657 95 2 part cover

Access Covers
Descriptions/Dimensions (mm) Part No Weight (kg) Cover config
EzyBrixx Access Cover - 1350 x 600 Class B Tilemate infill 82628 39.2 2 part cover
EzyBrixx Access Cover - 1350 x 600 Class B Pavermate infill 82405 39.2 2 part cover
EzyBrixx Access Cover - 1350 x 600 Class B Rhinocast infill 85465 88 2 part cover
EzyBrixx Access Cover - 1350 x 600 Class D Rhinocast infill 89463 172 2 part cover
EzyBrixx Access Cover - 1350 x 600 Class B Rhinocast Solid Top Contact ACO 2 part cover
EzyBrixx Access Cover - 1350 x 600 Class D Rhinocast Solid Top Contact ACO 2 part cover



PDF Spec Info

DWG Product Drawing

Accessories

Pit additions
Descriptions/Dimensions (mm) Part No Weight (kg)
EzyBrixx Cable support (each) 142567 1
EzyBrixx Ladder POA POA

Pit maintenance
Descriptions/Dimensions (mm) Part No Weight (kg)
PowerLok Tool 01318 0.2
Universal Lifting Key 84306 0.4
Rhinocast: lifting key - short handle (pair) 84654 -
Rhinocast: lifting key - long handle (pair) 84854 -

Installation devices
Descriptions/Dimensions (mm) Part No
4m eye to eye lifting slings (set of 4) 142565
Holesaw EzyBrixx: tungsten grit 30mm system - Short Hex 142760
Holesaw EzyBrixx: tungsten grit 65mm system - Short Hex 142761
Holesaw EzyBrixx: tungsten grit 70mm system - Short Hex 142762
Holesaw EzyBrixx: tungsten grit 90mm system - Short Hex 142763
Holesaw EzyBrixx: tungsten grit 120mm system - Short Hex 142764
Holesaw EzyBrixx: tungsten grit 160mm system - Short Hex 142765
Holesaw EzyBrixx: tungsten grit 30mm system -Short SDS 142766
Holesaw EzyBrixx: tungsten grit 65mm system -Short SDS 142767
Holesaw EzyBrixx: tungsten grit 70mm system - Short SDS 142768
Holesaw EzyBrixx: tungsten grit 90mm system - Short SDS 142769
Holesaw EzyBrixx: tungsten grit 120mm system - Short SDS 142770
Holesaw EzyBrixx: tungsten grit 160mm system - Short SDS 142771
Holesaw EzyBrixx: pilot key - 200mm long 142772
Holesaw EzyBrixx: pilot key - 40mm long drift key 142773
Short SDS adaptor 142774
Short HEX adaptor 142775
Long HEX adaptor 142776
Long SDS adaptor 142777

Keyhole / IP protection
Descriptions/Dimensions (mm) Part No
Universal Plug 84625
