Surface ducting channels

surface ducting channelsACO offers light and heavy duty cable ducting systems. Both are available in 100mm, 200mm and 300mm nominal widths and consist of one metre length modular channels that are assembled to produce continuous runs. Lids are available in polymer concrete, steel and ductile iron to suit every application up to Class G (AS 3996).

Runs that are cast in situ (typically cable trunking systems intended for larger cables etc.) can be enclosed with trench run multipart access covers available for all load classes to Class G (AS 3996). Contact ACO for details.

  • The CD series is ACO’s light duty cable ducting system.
  • The CS series is ACO’s heavy duty cable ducting system.

CD Series
– light duty cable ducting system

Surface Ducting CD Series
1Steel lid (AS 3996 Class B)
AS/NZS 4586 slip resistance rating: R10. IP4X (AS 60529) protection against ingress of foreign objects.
2Polymer concrete lid (AS 3996 Class A). IP4X (AS 60529) protection against ingress of foreign objects.
3Polymer concrete end cap.
41-metre long polymer concrete modular ducting channel.

CS Series
– heavy duty cable ducting system

Surface Ducting CS Series
1Ductile iron lid (up to AS 3996 Class G). IP4X (AS 60529) protection against ingress of foreign objects.
2M10 high tensile steel bolts with friction grip washers.
3Integrally cast-in ductile iron edge rail.
4Plastic end cap.
51-metre long polymer concrete modular ducting channel.

Surface Ducting Channels Parts Tables

CD Series – light duty ducting system (1000mm length modular units)

CD1215 - W: 100mm x D: 145mm
  Internal dimensions (mm) channel with overlay lid channel with bolted lid
Length Width Depth Channel with
overlay lid
Channel with
bolted lid
CD1215 Ducting Channel 1000 100 145 cross

Channel Details
  Part No Cover Weight
(kg)
JPG
CD1215 Ducting channel 75622 14 JPG
CD1215 End cap 76625 0.6 JPG

Lid Details
  Part No Cover Weight
(kg)
JPG
CD1215 Polymer concrete lid (AS 3996 Class A) 75639 5 JPG
CD1215 Steel lid (AS 3996 Class B) 75643 5 JPG

CD2127 - W: 180mm x D: 240mm
  Internal dimensions (mm) channel with overlay lid channel with bolted lid
Length Width Depth Channel with
overlay lid
Channel with
bolted lid
CD2127 Ducting Channel 1000 180 240 cross

Channel Details
  Part No Cover Weight
(kg)
JPG
CD2127 Ducting channel 75664 31 JPG
CD2127 End cap 76238 1.2 JPG

Lid Details
  Part No Cover Weight
(kg)
JPG
CD2127 Polymer concrete lid (AS 3996 Class A) 75671 14 JPG
CD2127 Steel lid (AS 3996 Class B) 75688 9 JPG

CD3015 - W: 300mm x D: 130mm
  Internal dimension (mm) channel with overlay lid channel with bolted lid
Length Width Depth Channel with
overlay lid
Channel with
bolted lid
CD3015 Ducting Channel 1000 300 130 cross

Channel Details
  Part No Cover Weight
(kg)
JPG
CD3015 Ducting channel 75733 21 JPG
CD3015 End cap 76619 1.8 JPG

Lid Details
  Part No Cover Weight
(kg)
JPG
CD3015 Polymer concrete lid (AS 3996 Class A) 75740 17 JPG
CD3015 Steel lid (AS 3996 Class B) 75754 15 JPG

CS Series – heavy duty ducting system  (1000mm length modular units)

CS100 - W: 100mm x D: 172mm or 292mm
  Internal dimensions (mm) channel with overlay lid channel with bolted lid
Length Width Depth Channel with
overlay lid
Channel with
bolted lid
CS100 - CS010 Ducting Channel 1000 100 172 cross
CS100 - CS030 Ducting Channel 1000 100 292 cross

CS100 - CS030 Channel Details
  Part No Cover Weight
(kg)
Total Weight
(kg)
JPG
CS010 Ducting channel with ductile iron lid (AS 3996 Class G) 02813 7 39 JPG
CS030 Ducting channel with ductile iron lid (AS 3996 Class G) 02815 7 49 JPG
CS100 End cap 90396 0.3 JPG


Spec Info

CS200 - W: 200mm x D: 260mm
  Internal dimensions (mm) channel with overlay lid channel with bolted lid
Length Width Depth Channel with
overlay lid
Channel with
bolted lid
CS200 - CS2000 Ducting Channel 1000 200 260 cross

CS200 - CS2000 Channel Details
  Part No Cover Weight
(kg)
Total Weight
(kg)
JPG
CS2000 Ducting channel with ductile iron lid (AS 3996 Class F) 76537 15 82 JPG
CS200 End cap 95101 0.3 JPG


Spec Info

CS300 - W: 300mm x D: 362mm or 482mm
  Internal dimensions (mm) channel with overlay lid channel with bolted lid
Length Width Depth Channel with
overlay lid
Channel with
bolted lid
CS300 - CS3000 Ducting Channel 1000 300 362 cross
CS300 - CS3020 Ducting Channel 1000 300 482 cross

CS300 - CS3020 Channel Details
  Part No Cover Weight
(kg)
Total Weight
(kg)
JPG
CS3000 Ducting channel with ductile iron lid (AS 3996 Class E) 76561 22 112 JPG
CS3020 Ducting channel with ductile iron lid (AS 3996 Class E) 76586 22 122 JPG
CS300 End cap 93849 1.2 JPG


Spec Info

Accessories

Surface Ducting Identification
  Part No Weight (kg) JPG
Brass plate - Electricity 77416 0.05 JPG
Brass plate - Communications 77402 0.05 JPG
Brass plate - Gas 77420 0.05 JPG

Holesaws
  Part No Weight kg JPG
Holesaw: sintered 95mm system - hex shaft 142011 0.90 JPG

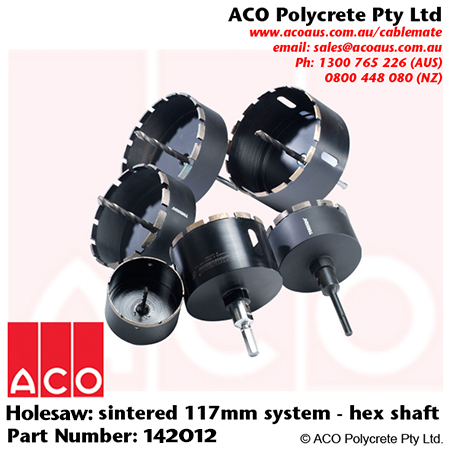

Holesaw: sintered 117mm system - hex shaft 142012 1.25 JPG
Holesaw: sintered 127mm system - hex shaft 142013 1.30 JPG
Holesaw: sintered 152mm system - hex shaft 142014 1.85 JPG
Holesaw: sintered 180mm system - hex shaft 142015 1.95 JPG
Holesaw: sintered 95mm system - SDS 142016 0.85 JPG
Holesaw: sintered 117mm system - SDS 142017 1.35 JPG
Holesaw: sintered 127mm system - SDS 142018 1.35 JPG
Holesaw: sintered 152mm system - SDS 142019 2.00 JPG
Holesaw: sintered 180mm system - SDS 142020 2.55 JPG
