Polycrete ® Pits

Polycrete® Pits have excellent insulation properties, high mechanical strengths, chemical resistance and zero water absorption, which makes them ideal as electrical and communications enclosures.

Lighter and therefore less cumbersome than traditional concrete pits, only large Polycrete® Pits require special lifting equipment.

Polycrete Cable Pits

Polycrete® Pits - polymer concrete enclosures

Polymer Concrete Pits

Features & benefits

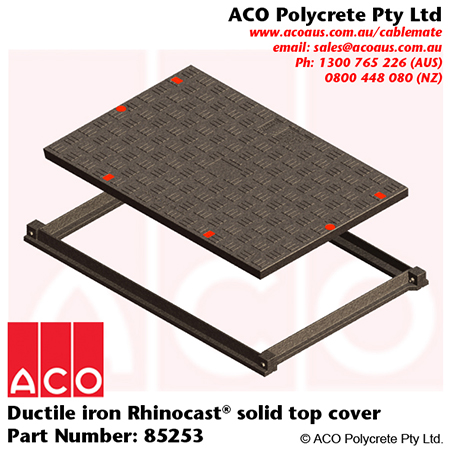

1Ductile iron Rhinocast® solid top cover (AS 3996 Class B) AS/NZS 4586 slip resistance rating: R10

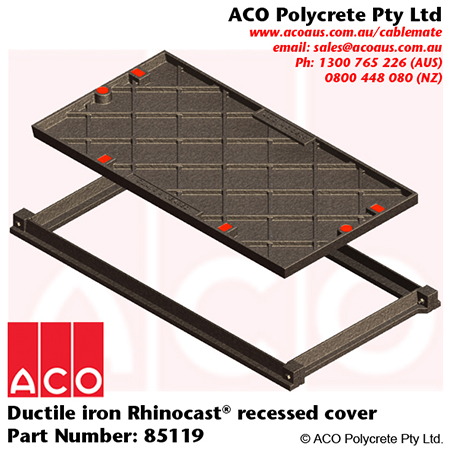

Ductile iron Rhinocast® recessed cover (AS 3996 Class B).
2Ductile iron Rhinocast® solid top cover (AS 3996 Class D) AS/NZS 4586 slip resistance rating: R10
Ductile iron Rhinocast® recessed cover (AS 3996 Class D or G)
Iron frame - external dim.

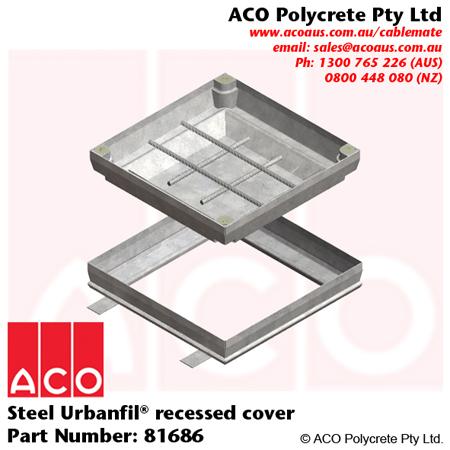

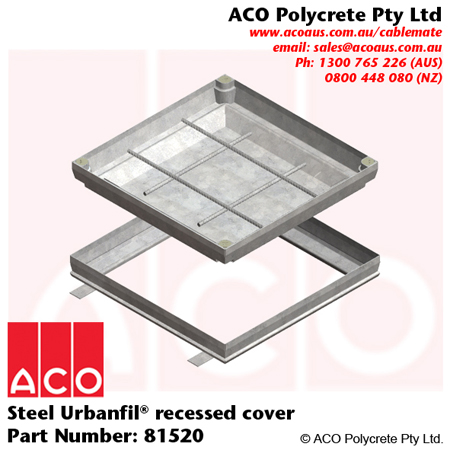

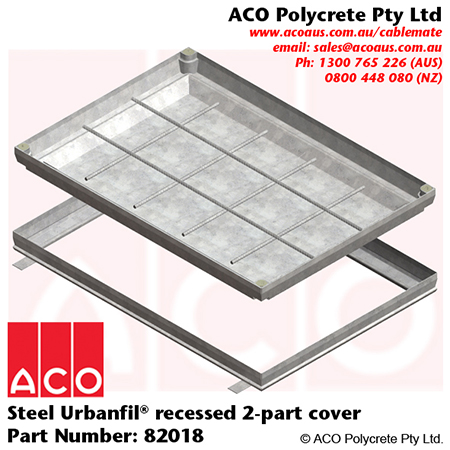

3Steel Urbanfil® recessed cover (AS 3996 Class B).

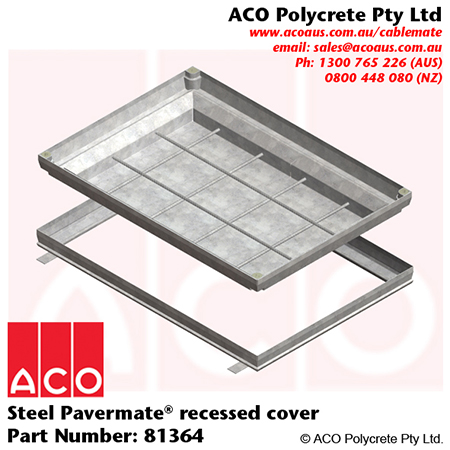

4Steel Pavermate® recessed cover (AS 3996 Class B).
5Steel lid (AS 3996 Class B) AS/NZS 4586 slip resistance rating: R10. IP4X (AS 60529) protection against ingress of foreign objects if fitted with universal plug.
6Polymer concrete lid (AS 3996 Class A) AS/NZS 4586 slip resistance rating: R10. IP4X (AS 60529) protection against ingress of foreign objects if fitted with universal plug.
7Holesaw guides for conduit entry - holes can be cut anywhere on side walls. The maximum number of holes recommended per pit is limited by conduit quantity and size.
For more information, contact ACO.
Parts lists

Polycrete® Pits - range parts lists

Square pits

Earth Rod Pit | 200mm x 200mm x 150mm
Nominal opening (mm) Nominal depth (mm) polymer pit with lid polymer pit with riser lid polymer pit with access cover polymer pit with access cover and lid
Length Width No Riser 1 Riser 2 Risers Pit with Lid Pit with Riser & Lid Pit with Access Cover Pit with Riser & Access Cover
200 200 150

Pit & Lid Details
  Part No Depth (mm) Weight (kg) JPG
PEP22 Earth Rod Pit with aluminium lid 75780 150 23.4 JPG
PEP22 Earth Rod Pit with polymer concrete lid 75767 150 17.6 JPG


PDFSpec Info

Type 33 | 353mm x 353mm x 444mm (riser available)
Nominal opening (mm) Nominal depth (mm) polymer pit with lid polymer pit with riser lid polymer pit with access cover polymer pit with access cover and lid
Length Width No Riser 1 Riser 2 Risers Pit with Lid Pit with Riser & Lid Pit with Access Cover Pit with Riser & Access Cover
353 353 444 744 1044

Pit & Riser Details
  Part No Depth (mm) Weight (kg) JPG DWG
Type 33 polymer concrete pit 75244 444 23.4 JPG
Type 33 polymer concrete riser (adds 300mm to pit depth) 75265 320 17.6 JPG

Lids & Access Covers Details
  Part No Cover
weight

(kg)
Total
weight

(kg)
JPG
Polymer concrete lid (AS 3996 Cl A) - Blank 75282 6 6 JPG
Polymer concrete lid (AS 3996 Cl A) - Communications 75299 6 6 JPG
Polymer concrete lid (AS 3996 Cl A) - Electricity 75303 6 6 JPG
Steel lid (AS 3996 Cl B) 73320 3 3 JPG
Steel Tilemate infill cover (AS 3996 Cl B) 81686 7 11 JPG
Steel Pavermate infill cover (AS 3996 Cl B) 81297 8 12 JPG

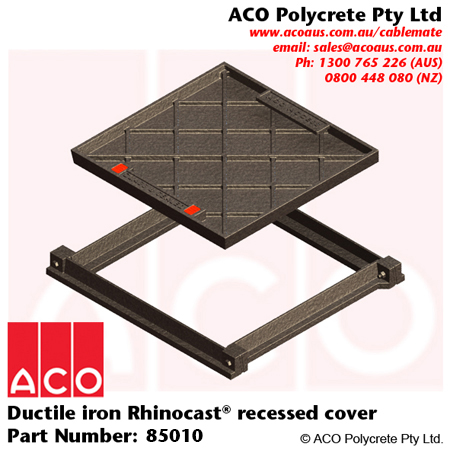

Ductile iron Rhinocast infill cover (AS 3996 Cl B) 85010 18 30 JPG
Ductile iron Rhinocast solid top cover (AS 3996 Cl B) 85249 20 44 JPG

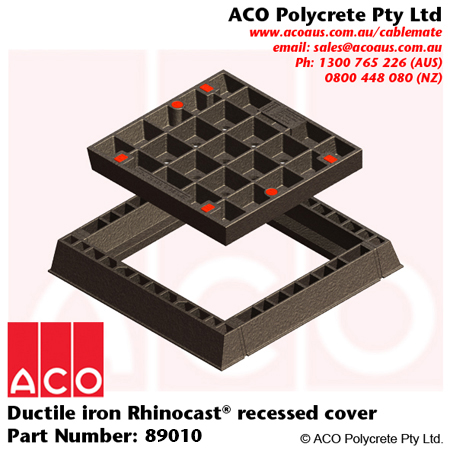

Ductile iron Rhinocast infill cover (AS 3996 Cl D) 89010 32 54 JPG

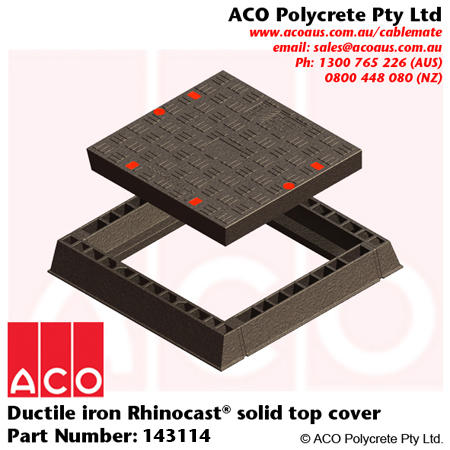

Ductile iron Rhinocast solid top cover (AS 3996 Cl D) 143114 32 54 JPG
Ductile iron Rhinocast infill cover (AS 3996 Cl G) 87016 86 138 JPG


PDFSpec Info

revit BIM Model

Type 45 | 511mm x 511mm x 600mm (riser available)
Nominal opening (mm) Nominal depth (mm) polymer pit with lid polymer pit with riser lid polymer pit with access cover polymer pit with access cover and lid
Length Width No Riser 1 Riser 2 Risers Pit with Lid Pit with Riser & Lid Pit with Access Cover Pit with Riser & Access Cover
511 511 600 900 1200

Pit & Riser Details
  Part No Depth (mm) Weight (kg) JPG DWG
Type 45 polymer concrete pit 75362 600 47.0 JPG
Type 45 polymer concrete riser (adds 300mm to pit depth) 75389 350 27.3 JPG

Lids & Access Covers Details
  Part No Cover
weight

(kg)
Total
weight

(kg)
JPG
Polymer concrete lid (AS 3996 Cl A) - Blank 75400 15 15 JPG
Polymer concrete lid (AS 3996 Cl A) - Communications 75414 15 15 JPG
Polymer concrete lid (AS 3996 Cl A) - Electricity 75427 15 15 JPG
Steel lid (AS 3996 Cl B) 74521 11 11 JPG
Steel PowerLok lid (AS 3996 Cl B) 74530 14 14 JPG
Steel Tilemate infill cover (AS 3996 Cl B) 81520 11 16 JPG

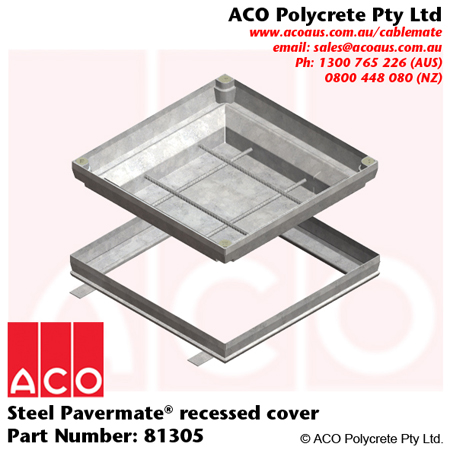

Steel Pavermate infill cover (AS 3996 Cl B) 81305 12 18 JPG
Ductile iron Rhinocast infill cover (AS 3996 Cl B) 85014 28 40 JPG
Ductile iron Rhinocast solid top cover (AS 3996 Cl B) 85249 20 44 JPG
Ductile iron Rhinocast infill cover - reduced rib (AS 3996 Cl C) 142313 30 63 JPG
Ductile iron Rhinocast infill cover (AS 3996 Cl D) 89013 42 83 JPG

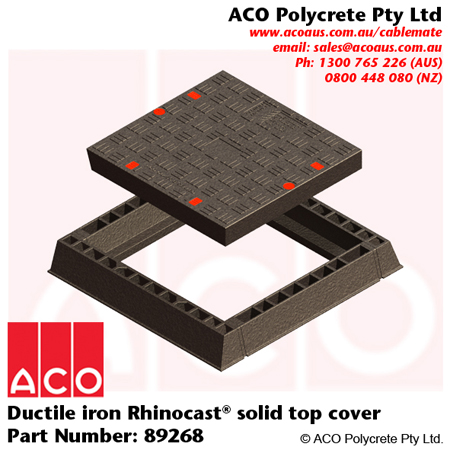

Ductile iron Rhinocast solid top cover (AS 3996 Cl D) 89268 46 86 JPG
Ductile iron Rhinocast infill cover (AS 3996 Cl G) 87016 86 138 JPG


PDF Spec Info

revit BIM Model



Type 66 | 663mm x 663mm x 618mm (riser available)
Nominal opening (mm) Nominal depth (mm) polymer pit with lid polymer pit with riser lid polymer pit with access cover polymer pit with access cover and lid
Length Width No Riser 1 Riser 2 Risers Pit with Lid Pit with Riser & Lid Pit with Access Cover Pit with Riser & Access Cover
663 663 618 918 1218

Pit & Riser Details
  Part No Depth (mm) Weight (kg) JPG DWG
Type 66 polymer concrete pit 75105 618 72.2 JPG
Type 66 polymer concrete riser (adds 300mm to pit depth) 75126 350 38.3 JPG

Lids & Access Covers Details
  Part No Cover
weight

(kg)
Total
weight

(kg)
JPG
Polymer concrete lid (AS 3996 Cl A) - Blank 75149 24 24 JPG
Polymer concrete lid (AS 3996 Cl A) - Communications 75154 24 24 JPG
Polymer concrete lid (AS 3996 Cl A) - Electricity 75160 24 24 JPG
Steel lid (AS 3996 Cl B) 76620 17 17 JPG
Steel PowerLok lid (AS 3996 Cl B) 76630 22 22 JPG
Steel Tilemate infill cover (AS 3996 Cl B) 81565 15 22 JPG
Steel Pavermate infill cover (AS 3996 Cl B) 81948 18 24 JPG
Ductile iron Rhinocast infill cover (AS 3996 Cl B) 85045 36 60 JPG
Ductile iron Rhinocast solid top cover (AS 3996 Cl B) 85222 35 63 JPG
Ductile iron Rhinocast infill cover - reduced rib (AS 3996 Cl C) 142314 56 98 JPG

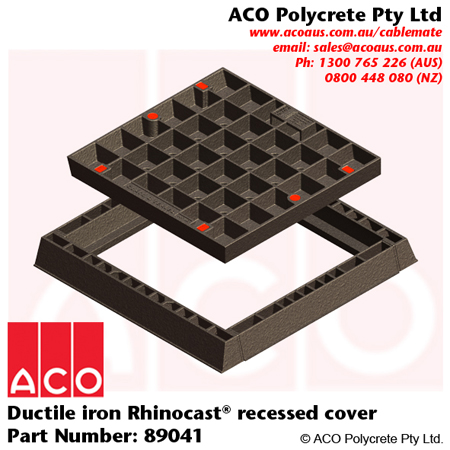

Ductile iron Rhinocast infill cover (AS 3996 Cl D) 89041 62 116 JPG

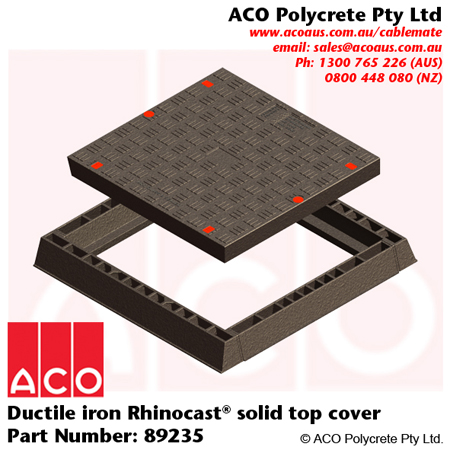

Ductile iron Rhinocast solid top cover (AS 3996 Cl D) 89235 65 125 JPG

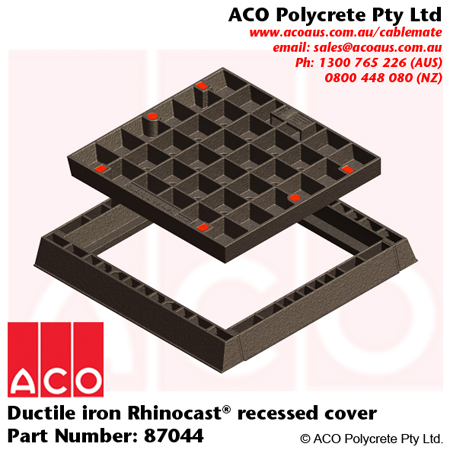

Ductile iron Rhinocast infill cover (AS 3996 Cl G) 87044 135 200 JPG


PDF Spec Info

revit BIM Model



Type 66H | 663mm x 663mm x 918mm (riser available)
Nominal opening (mm) Nominal depth (mm) polymer pit with lid polymer pit with riser lid polymer pit with access cover polymer pit with access cover and lid
Length Width No Riser 1 Riser 2 Risers Pit with Lid Pit with Riser & Lid Pit with Access Cover Pit with Riser & Access Cover
663 663 918 1218 1518

Pit & Riser Details
  Part No Depth (mm) Weight (kg) JPG DWG
Type 66H polymer concrete pit 75226 918 90.5 JPG
Type 66 polymer concrete riser (adds 300mm to pit depth) 75126 350 38.3 JPG

Lids & Access Covers Details
  Part No Cover
weight

(kg)
Total
weight

(kg)
JPG
Polymer concrete lid (AS 3996 Cl A) - Blank 75149 24 24 JPG
Polymer concrete lid (AS 3996 Cl A) - Communications 75154 24 24 JPG
Polymer concrete lid (AS 3996 Cl A) - Electricity 75160 24 24 JPG
Steel lid (AS 3996 Cl B) 76620 17 17 JPG
Steel PowerLok lid (AS 3996 Cl B) 76630 22 22 JPG
Steel Tilemate infill cover (AS 3996 Cl B) 81565 15 22 JPG
Steel Pavermate infill cover (AS 3996 Cl B) 81948 18 24 JPG
Ductile iron Rhinocast infill cover (AS 3996 Cl B) 85045 36 60 JPG
Ductile iron Rhinocast solid top cover (AS 3996 Cl B) 85222 35 63 JPG
Ductile iron Rhinocast infill cover (AS 3996 Cl D) 89041 62 116 JPG
Ductile iron Rhinocast solid top cover (AS 3996 Cl D) 89235 65 125 JPG
Ductile iron Rhinocast infill cover (AS 3996 Cl G) 87044 135 200 JPG


PDF Spec Info

revit BIM Model



Type 99 | 990mm x 990mm x 582mm (riser available)
Nominal opening (mm) Nominal depth (mm) polymer pit with lid polymer pit with riser lid polymer pit with access cover polymer pit with access cover and lid
Length Width No Riser 1 Riser 2 Risers Pit with Lid Pit with Riser & Lid Pit with Access Cover Pit with Riser & Access Cover
990 990 582 882 1182

Pit & Riser Details
  Part No Depth (mm) Weight (kg) JPG DWG
Type 99 polymer concrete pit 75489 582 135.4 JPG
Type 99 polymer concrete riser (adds 300mm to pit depth) 75500 350 70.2 JPG

Lids & Access Covers Details
  Part No Cover
weight

(kg)
Total
weight

(kg)
JPG
Polymer concrete 2-part lid (AS 3996 Cl A) - Blank 75525 29 62 JPG

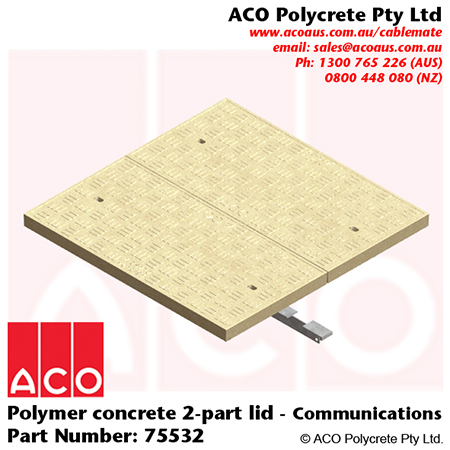

Polymer concrete 2-part lid (AS 3996 Cl A) - Communications 75532 29 62 JPG
Polymer concrete 2-part lid (AS 3996 Cl A) - Electricity 75541 29 62 JPG
Steel 2-part lid (AS 3996 Cl B) 79920 20 45 JPG
Steel PowerLok 2-part lid (AS 3996 Cl B) 79930 25 45 JPG

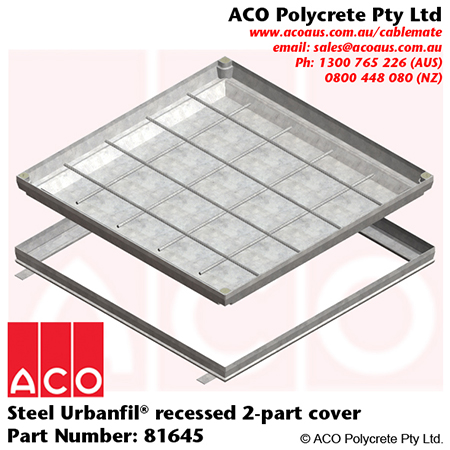

Steel Tilemate infill cover (AS 3996 Cl B) 81645 31 40 JPG

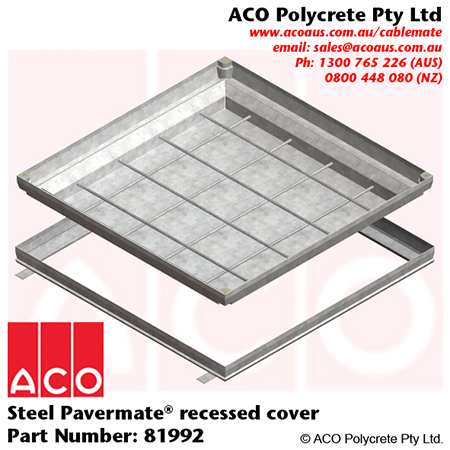

Steel Pavermate infill cover (AS 3996 Cl B) 81992 35 45 JPG

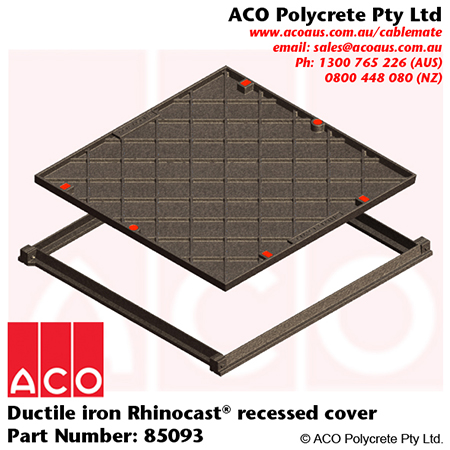

Ductile iron Rhinocast infill cover (AS 3996 Cl B) 85093 86 115 JPG

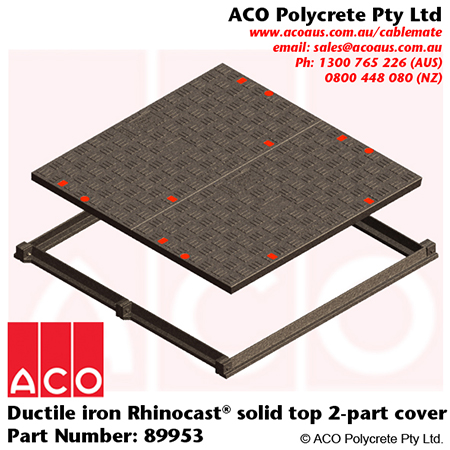

Ductile iron Rhinocast solid top 2-part cover (AS 3996 Cl B) 89953 48 149 JPG
Ductile iron Rhinocast solid top 1-part cover (AS 3996 Cl B) 143110 82 136 -
Ductile iron Rhinocast infill cover - reduced rib (AS 3996 Cl C) 142316 102 160 JPG

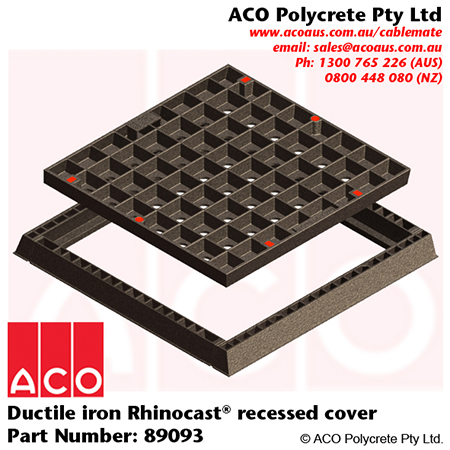

Ductile iron Rhinocast infill cover (AS 3996 Cl D) 89093 136 199 JPG

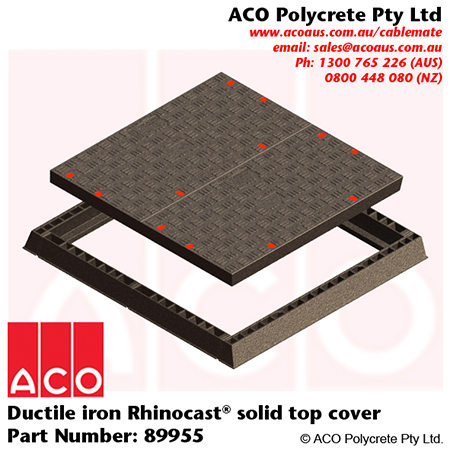

Ductile iron Rhinocast solid top 2-part cover (AS 3996 Cl D) 89955 80 244 JPG
Ductile iron Rhinocast solid top 1-part cover (AS 3996 Cl D)1 143111 107 179 -

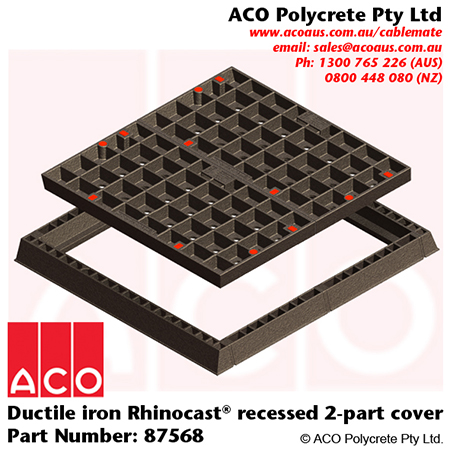

Ductile iron Rhinocast infill 2-part cover (AS 3996 Cl G) 87568 145 380 JPG


1. This size comes with a T-Frame


PDF Spec Info

revit BIM Model



Rectangular pits

Type 52 | 515mm x 228mm x 436mm
Nominal opening (mm) Nominal depth (mm) polymer pit with lid polymer pit with riser lid polymer pit with access cover polymer pit with access cover and lid
Length Width No Riser 1 Riser 2 Risers Pit with Lid Pit with Riser & Lid Pit with Access Cover Pit with Riser & Access Cover
515 228 436

Pit & Riser Details
  Part No Depth (mm) Weight (kg) JPG DWG
Type 52 polymer concrete pit 74651 436 21.7 JPG

Lids & Access Covers Details
  Part No Cover
weight

(kg)
Total
weight

(kg)
JPG
Polymer concrete lid (AS 3996 Cl A) - Blank 74675 5 5 JPG
Polymer concrete lid (AS 3996 Cl A) - Communications 74682 5 5 JPG
Polymer concrete lid (AS 3996 Cl A) - Electricity 74696 5 5 JPG
Steel lid (AS 3996 Cl B) 75220 3 3 JPG
Steel Tilemate infill cover (AS 3996 Cl B) 80150 8 13 JPG
Steel Pavermate infill cover (AS 3996 Cl B) 80151 8 13 JPG
Ductile iron Rhinocast infill cover (AS 3996 Cl B) 85014 28 40 JPG
Ductile iron Rhinocast solid top cover (AS 3996 Cl B) 85249 20 44 JPG
Ductile iron Rhinocast infill cover (AS 3996 Cl D) 89013 42 83 JPG
Ductile iron Rhinocast solid top cover (AS 3996 Cl D) 89268 46 86 JPG
Ductile iron Rhinocast infill cover (AS 3996 Cl G) 87016 86 138 JPG


PDFSpec Info

revit BIM Model



Type 63 | 652mm x 303mm x 743mm
Nominal opening (mm) Nominal depth (mm) polymer pit with lid polymer pit with riser lid polymer pit with access cover polymer pit with access cover and lid
Length Width No Riser 1 Riser 2 Risers Pit with Lid Pit with Riser & Lid Pit with Access Cover Pit with Riser & Access Cover
652 303 743

Pit & Riser Details
  Part No Depth (mm) Weight (kg) JPG DWG
Type 63 polymer concrete pit 74747 743 49.8 JPG

Lids & Access Covers Details
  Part No Cover
weight

(kg)
Total
weight

(kg)
JPG
Polymer concrete lid (AS 3996 Cl A) - Blank 74765 9 9 JPG
Polymer concrete lid (AS 3996 Cl A) - Communications 74772 9 9 JPG

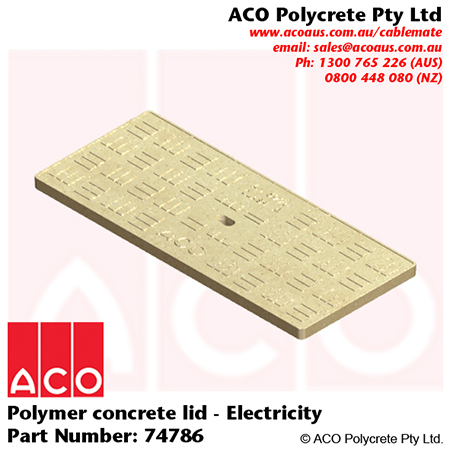

Polymer concrete lid (AS 3996 Cl A) - Electricity 74786 9 9 JPG
Steel lid (AS 3996 Cl B) 76320 6 6 JPG
Steel Tilemate infill cover (AS 3996 Cl B) 81225 11 16 JPG
Steel Pavermate infill cover (AS 3996 Cl B) 81340 11 16 JPG
Ductile iron Rhinocast infill cover (AS 3996 Cl B) 85037 28 49 JPG

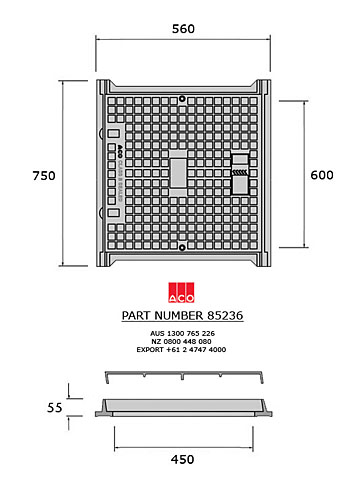

Ductile iron Rhinocast solid top cover (AS 3996 Cl B) 85236 28 47 JPG
Ductile iron Rhinocast infill cover (AS 3996 Cl D) 89034 51 99 JPG

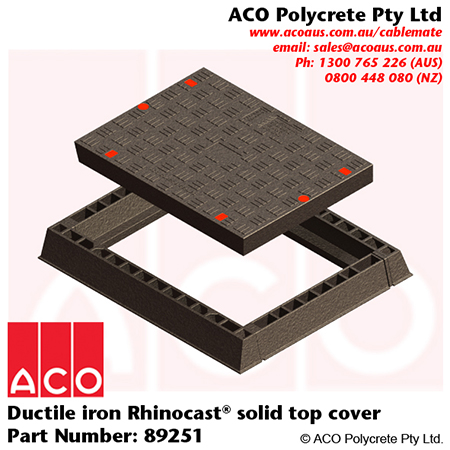

Ductile iron Rhinocast solid top cover (AS 3996 Cl D) 89251 51 105 JPG

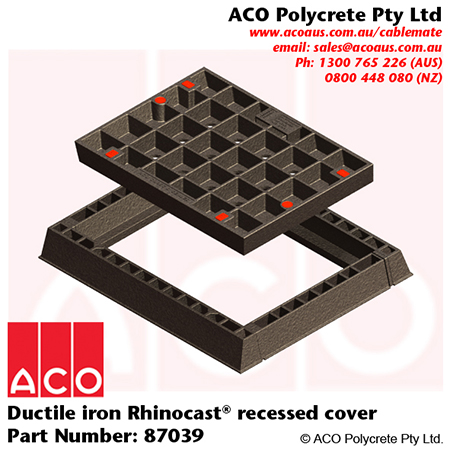

Ductile iron Rhinocast infill cover (AS 3996 Cl G) 87039 104 163 JPG


PDFSpec Info

revit BIM Model



Type 95 | 978mm x 510mm x 588mm (riser available)
Nominal opening (mm) Nominal depth (mm) polymer pit with lid polymer pit with riser lid polymer pit with access cover polymer pit with access cover and lid
Length Width No Riser 1 Riser 2 Risers Pit with Lid Pit with Riser & Lid Pit with Access Cover Pit with Riser & Access Cover
978 510 588 888 1188

Pit & Riser Details
  Part No Depth (mm) Weight (kg) JPG DWG
Type 95 polymer concrete pit 74845 588 80.0 JPG
Type 95 polymer concrete riser (adds 300mm to pit depth) 74861 350 44.2 JPG

Lids & Access Covers Details
  Part No Cover
weight

(kg)
Total
weight

(kg)
JPG
Polymer concrete lid (AS 3996 Cl A) - Blank 74886 29 29 JPG
Polymer concrete lid (AS 3996 Cl A) - Communications 74893 29 29 JPG
Polymer concrete lid (AS 3996 Cl A) - Electricity 74904 29 29 JPG
Steel lid (AS 3996 Cl B) 79520 20 20 JPG
Steel PowerLok lid (AS 3996 Cl B) 79530 25 25 JPG
Steel Tilemate infill cover (AS 3996 Cl B) 81661 18 26 JPG

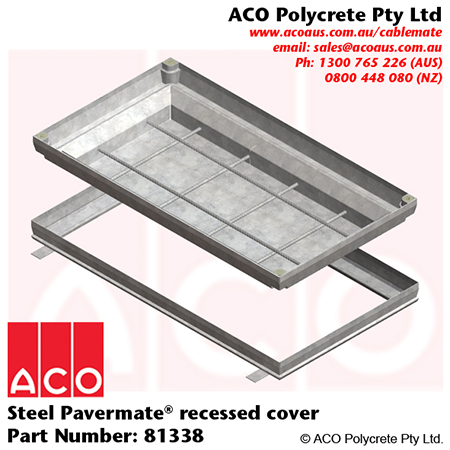

Steel Pavermate infill cover (AS 3996 Cl B) 81338 20 28 JPG
Ductile iron Rhinocast infill cover (AS 3996 Cl B) 85119 45 63 JPG

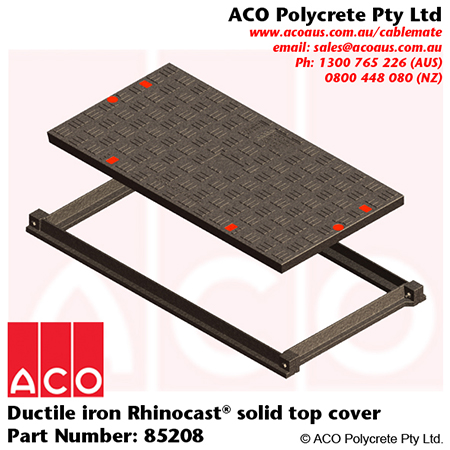

Ductile iron Rhinocast solid top cover (AS 3996 Cl B) 85208 48 83 JPG
Ductile iron Rhinocast infill cover (AS 3996 Cl D) 89124 72 130 JPG

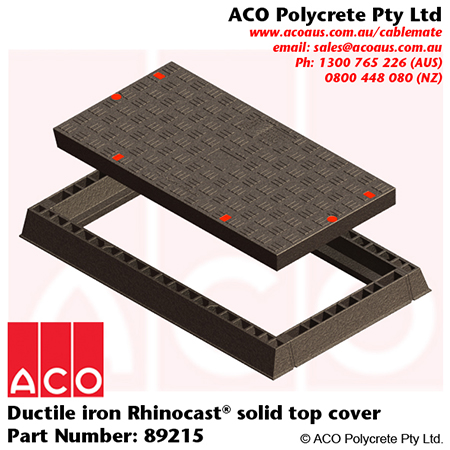

Ductile iron Rhinocast solid top cover (AS 3996 Cl D) 89215 80 139 JPG

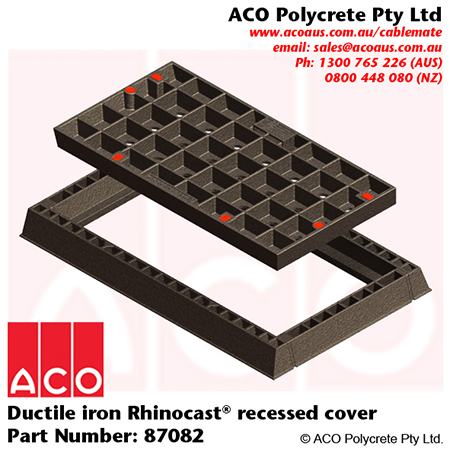

Ductile iron Rhinocast infill cover (AS 3996 Cl G) 87082 145 216 JPG


PDFSpec Info

revit BIM Model



Type 96 | 983mm x 683mm x 618mm (riser available)
Nominal opening (mm) Nominal depth (mm) polymer pit with lid polymer pit with riser lid polymer pit with access cover polymer pit with access cover and lid
Length Width No Riser 1 Riser 2 Risers Pit with Lid Pit with Riser & Lid Pit with Access Cover Pit with Riser & Access Cover
983 683 618 918 1218

Pit & Riser Details
  Part No Depth (mm) Weight (kg) JPG DWG
Type 96 polymer concrete pit 74429 618 92.4
Type 96 polymer concrete riser (adds 300mm to pit depth) 74463 350 50.1

Lids & Access Covers Details
  Part No Cover
weight

(kg)
Total
weight

(kg)
JPG
Polymer concrete 2-part lid (AS 3996 Cl A) - Blank 74560 22 46 JPG
Polymer concrete 2-part lid (AS 3996 Cl A) - Communications 74555 22 46 JPG
Polymer concrete 2-part lid (AS 3996 Cl A) - Electricity 74550 22 46 JPG
Steel 2-part lid (AS 3996 Cl B) 79620 15 30 JPG
Steel PowerLok 2-part lid (AS 3996 Cl B) 79630 20 39 JPG

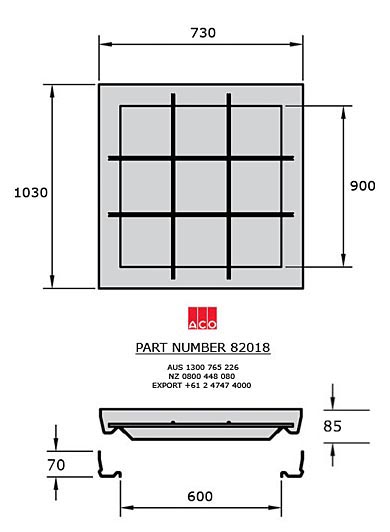

Steel Tilemate infill cover (AS 3996 Cl B) 82018 20 30 JPG
Steel Pavermate infill cover (AS 3996 Cl B) 81364 22 30 JPG

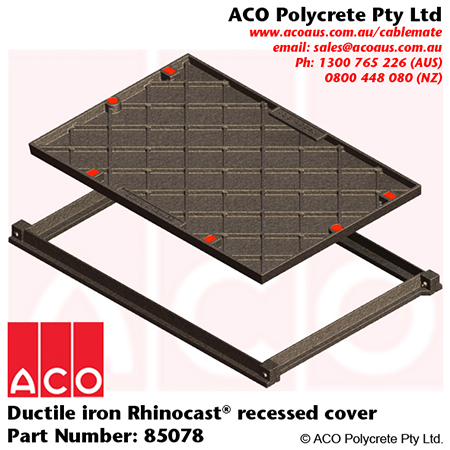

Ductile iron Rhinocast infill cover (AS 3996 Cl B) 85078 57 83 JPG
Ductile iron Rhinocast solid top cover (AS 3996 Cl B) 85253 57 87 JPG
Ductile iron Rhinocast infill cover - reduced rib (AS 3996 Cl C) 142315 75 123 JPG
Ductile iron Rhinocast infill cover (AS 3996 Cl D 89072 88 149 JPG

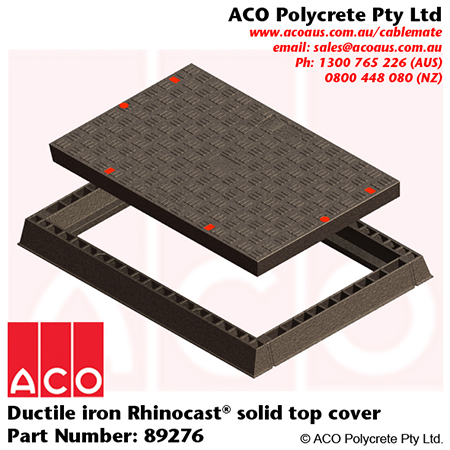

Ductile iron Rhinocast solid top cover (AS 3996 Cl D) 89276 102 165 JPG

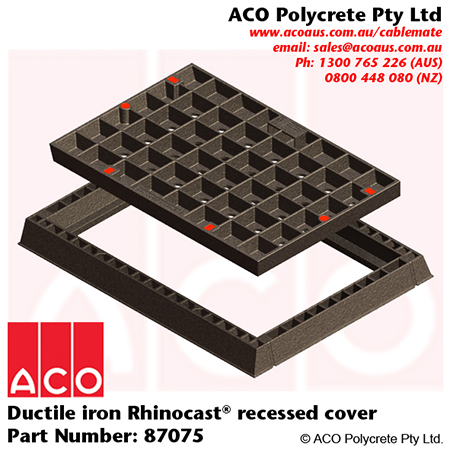

Ductile iron Rhinocast infill cover (AS 3996 Cl G) 87075 180 266 JPG


PDFSpec Info

revit BIM Model



Type 8 | 1351mm x 541mm x 902mm (riser available)
Nominal opening (mm) Nominal depth (mm) polymer pit with lid polymer pit with riser lid polymer pit with access cover polymer pit with access cover and lid
Length Width No Riser 1 Riser 2 Risers Pit with Lid Pit with Riser & Lid Pit with Access Cover Pit with Riser & Access Cover
1351 541 902 1202 1502

Pit & Riser Details
  Part No Depth (mm) Weight (kg) JPG DWG
Type 8 polymer concrete pit 74991 902 154.5 JPG
Type 8 polymer concrete riser (adds 300mm to pit depth) 73419 350 58.7 JPG

Lids & Access Covers Details
  Part No Cover
weight

kg
Total
weight

kg
JPG
Cement concrete 2-part lid (AS 3996 Cl A) - Blank 75010 33 69 JPG
Cement concrete 2-part lid (AS 3996 Cl A) - Communications 75011 33 69 JPG
Cement concrete 2-part lid (AS 3996 Cl A) - Electricity 75012 33 69 JPG
Steel 2-part lid (AS 3996 Cl B) 76820 15 31 JPG
Steel PowerLok 2-part lid (AS 3996 Cl B) 76830 20 39 JPG
Steel Tilemate infill cover (AS 3996 Cl B) 82567 13 39 JPG
Steel Pavermate infill cover (AS 3996 Cl B) 82373 15 41 JPG
Ductile iron Rhinocast infill cover (AS 3996 Cl B) 85433 30 91 JPG
Ductile iron Rhinocast solid top 2-part cover (AS 3996 Cl B) 86853 28 89 JPG

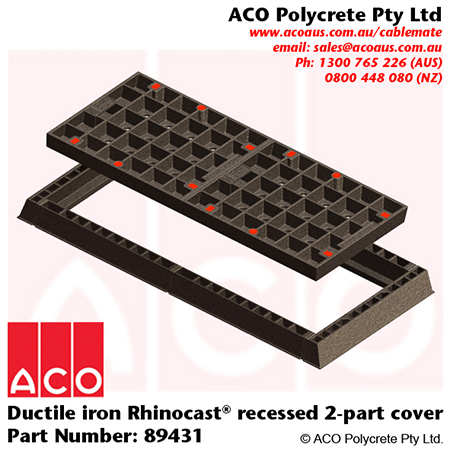

Ductile iron Rhinocast infill cover (AS 3996 Cl D) 89431 51 182 JPG

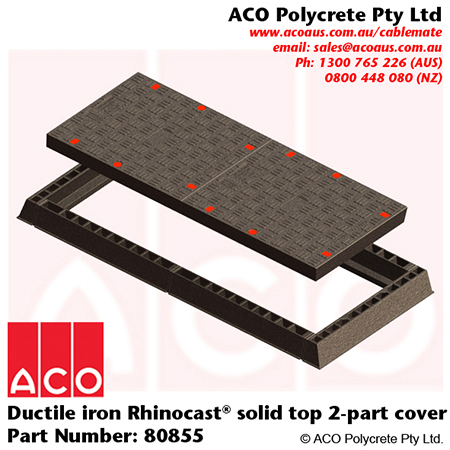

Ductile iron Rhinocast solid top 2-part cover (AS 3996 Cl D) 80855 51 169 JPG
Ductile iron Rhinocast infill 2-part cover (AS 3996 Cl G) 87463 135 358 JPG


PDFSpec Info

revit BIM Model



Pit accessories

Pit Additions
  Part No Weight (kg) JPG
Pit divider angles 76514 0.35 JPG
Hanger brackets 76509 0.15 JPG

Pit Identification
  Part No Weight (kg) JPG
Brass plate - Electricity 77416 0.05 JPG
Brass plate - Communications 77402 0.05 JPG
Brass plate - Gas 77420 0.05 JPG

PowerLok® Assembly
  Part No Weight (kg) JPG
PowerLok® 76510 0.80 JPG

Pit Maintenance
  Part No Weight (kg) JPG
Polymer concrete repair kit (1L) 02163 1.40 JPG
PowerLok® tool (pg 20) 01318 0.20 JPG
Cement concrete lid lifter 84307 1.15 JPG
Universal short lifting key 84306 0.40 JPG
Urbanfil®/Pavermate®: allen locking key 84313 0.25 JPG
Rhinocast®: lifting key - short handle (pair) 84654 3.60 JPG
Rhinocast®: lifting key - long handle (pair) 84854 8.10 JPG
Rhinocast®: sealing grease 4kg 73131 4.40 JPG

Installation Devices
  Part No Weight (kg) JPG
Type 96 & 99 Certified pit lifter 84308 6.10 JPG
Type 8 Certified pit lifter 141835 12.0 JPG
Type 66 & 66H Certified pit lifter 143288 17 JPG
Holesaw: sintered 95mm system - hex shaft 142011 0.90 JPG
Holesaw: sintered 117mm system - hex shaft 142012 1.25 JPG
Holesaw: sintered 127mm system - hex shaft 142013 1.30 JPG
Holesaw: sintered 152mm system - hex shaft 142014 1.85 JPG
Holesaw: sintered 180mm system - hex shaft 142015 1.95 JPG
Holesaw: sintered 95mm system - SDS 142016 0.85 JPG
Holesaw: sintered 117mm system - SDS 142017 1.35 JPG
Holesaw: sintered 127mm system - SDS 142018 1.35 JPG
Holesaw: sintered 152mm system - SDS 142019 2.00 JPG
Holesaw: sintered 180mm system - SDS 142020 2.55 JPG

Keyhole/IP Protection
  Part No Weight (kg) JPG
Universal plug 84625 negligible JPG
Urbanfil®/Pavermate®: round grey plastic caps 84329 negligible JPG
Urbanfil®/Pavermate®: round gold plastic caps 84334 negligible JPG
Rhinocast®: rectangular long red plastic caps 84622 negligible JPG
Rhinocast®: rectangular short red plastic caps 84620 negligible JPG
Rhinocast®: round red plastic caps 84626 negligible JPG

Polycrete® is ACO’s trademark for polymer concrete products
Downloads Installation Enquire now

Related brand:

ACO AccessAccess cover & frame systems

ACO manufactures a range of high quality access covers which, whilst providing speedy and easy access to underground services, enable decorative floor finishes to be maintained with minimal interference.

For more info, click here.

SUBSCRIBE
Close
SUBSCRIBE
Close
Back To Top
