ACO PITLOK®

ACO PITLOK® comprises a system of compatible enclosure components to produce a SCEC SL1 rated enclosure. 2 product ranges are offered:

  • plastic pit range including tamper evident lids, precast reinforced concrete plinths
  • concrete pit range including tamper evident lids, precast reinforced concrete pits

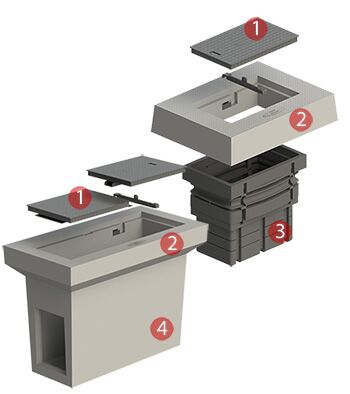

ACO PitLok SCEC Approved Pits

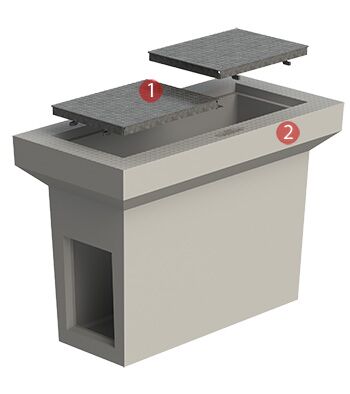

1SCEC (SL1) approved tamper evident lid
2SCEC (SL1) approved precast concrete plinth
3Polyethylene pit
4SCEC (SL1) approved precast pit (available in full body or split body)

SCEC approved pit range parts list

ACO PITLOK® (SL1) range

Concrete pits with steel lids

J5P
Description Part No SEEPL code Internal Opening Dim.
L x W x D (mm)
Total product
weight (kg)
J5P - full body pit only 142263 600 x 340 x 780 409
J5P - split body pit only 142264 600 x 340 x 780 409
P5 - steel lid (Class B) 142240 J5P-142240 17
P5 - steel lid (Class D) 142854 J5P-142854 26

PDF Spec Info J5P
DWG DWG file J5P - full body
DWG DWG file J5P - split body
revit Revit file

J600P
Description Part No SEEPL code Internal Opening Dim.
L x W x D (mm)
Total product
weight (kg)
J600P - full body pit only 142265 535 x 535 x 750 473
J600P - split body pit only 142266 535 x 535 x 750 466
P600 - steel lid (Class B) 142488 J600P-142488 23
P600 - steel lid (Class D) 143065 J600P-143065 34

PDF Spec Info J600P
DWG DWG file J600P - full body
DWG DWG file J600P - split body
revit Revit file

J8P
Description Part No SEEPL code Internal Opening Dim.
L x W x D (mm)
Total product
weight (kg)
J8P - full body pit only 142267 1250 x 440 x 910 818
J8P - split body pit only 142268 1250 x 440 x 910 818
P8 - steel lid (Class B) 142241 J8P-142241 44
P8 - steel lid (Class D) 142851 J8P-142851 66

PDF Spec Info J8P
DWG DWG file J8P - full body
DWG DWG file J8P - split body
revit Revit file

J10P
Description Part No SEEPL code Internal Opening Dim.
L x W x D (mm)
Total product
weight (kg)
J10P - full body pit only 142269 1905 x 440 x 920 1117
J10P - split body pit only 142270 1905 x 440 x 920 1105
P10 - steel lid (Class B) 142514 J10P-142514 63
P10 - steel lid (Class D) 143063 J10P-143063 94

PDF Spec Info J10P
DWG DWG file J10P - full body
DWG DWG file J10P - split body
revit Revit file

J1000P
Description Part No SEEPL code Internal Opening Dim.
L x W x D (mm)
Total product
weight (kg)
J1000P - full body pit only 142271 945 x 945 x 905 863
J1000P - split body pit only 142272 945 x 945 x 905 863
P1000 - steel lid (Class B) 142489 J1000P-142489 67
P1000 - steel lid (Class D) 143055 J1000P-143055 140

PDF Spec Info J1000P
DWG DWG file J1000P - full body
DWG DWG file J1000P - split body
revit Revit file

Concrete pits with hinged steel lids

J1000HP
Description Part No SEEPL code Internal Opening Dim.
L x W x D (mm)
Total product
weight (kg)
J1000HP - split body assembly 990 x 990 x 1105
J1000HP - split body pit only 142449 930 x 930 x 1000 863
Plinth1000HP-10 -
hinged lid & plinth (Class B)
142238 Plinth 1000HP-142238 500
Plinth1000HP-10 -
hinged lid & plinth (Class D)
143095 Plinth 1000HP-143095 520

PDF Spec Info J1000HP
DWG DWG file J1000HP - split body
revit Revit file

J1500HP
Description Part No SEEPL code Internal Opening Dim.
L x W x D (mm)
Total product
weight (kg)
J1500HP - split body assembly 990 x 990 x 1380
J1500HP - split body pit only 142520 1500 x 1500 x 1220 863
Plinth1000HP-15 -
hinged lid & plinth (Class B)
142519 Plinth 1500HP -142519 1110
Plinth1000HP-15 -
hinged lid & plinth (Class D)
143096 Plinth 1500HP-143096 1120

PDF Spec Info J1500HP
DWG DWG file J1500HP - split body
revit Revit file

Concrete plinths with steel lids

Plinth800P
Description Part No SEEPL code Internal Opening Dim.
L x W x D (mm)
Total product
weight (kg)
Plinth800P - concrete plinth 142366 715 x 715 x 150 355
800P - steel lid (Class B) 142367 PlinthP800-142367 To suit Plinth800P 53
800P - steel lid (Class D) 143081 PlinthP800-143081 To suit Plinth800P 60

PDF Spec Info Plinth800P
revit Revit file

Plinth1000HP
Description Part No SEEPL code Internal Opening Dim.
L x W x D (mm)
Total product
weight (kg)
Plinth1000HP-10 -
hinged lid & plinth (Class B)
142238 Plinth 1000HP-142238 990 x 990 x 200 500
Plinth1000HP-10 -
hinged lid & plinth (Class D)
143095 Plinth 1000HP-143095 990 x 990 x 200 520
Plinth1000HP-15 -
hinged lid & plinth (Class B)
142519 Plinth 1000HP -142519 990 x 990 x 220 1110
Plinth1000HP-15 -
hinged lid & plinth (Class D)
143096 Plinth 1000HP-143096 990 x 990 x 220 1120

PDF Spec Info PlinthP1000HP-10
PDF Spec Info PlinthP1000HP-15
DWG DWG file PlinthP100HP-10
DWG DWG file PlinthP100HP-15
revit Revit file

Plastic pits, concrete plinths with steel lids

P4 Enclosures
Description Part No SEEPL code Internal Opening Dim.
L x W x D (mm)
Total product
weight (kg)
P4 - plastic pit 75957 605 x 300 x 745 12
Plinthp4 - concrete plinth 142234 570 x 275 x 150 175
P4 - steel lid (Class B) 142239 PlinthP4-142239 To suit PlinthP4 15
P4 - steel lid (Class D) 143078 PlinthP4-143078 To suit PlinthP4 20

PDF Spec Info P4 plastic pit
PDF Spec Info PlinthP4 with lid
DWG DWG file PlinthP4
revit Revit file

P5 Enclosures
Description Part No SEEPL code Internal Opening Dim.
L x W x D (mm)
Total product
weight (kg)
P5 - plastic pit 7604299 603 x 353 x 581 10
PlinthP5 - concrete plinth 142235 575 x 330 x 150 195
P5 - steel lid (Class B) 142240 PlinthP5-142240 To suit PlinthP5 17
P5 - steel lid (Class D) 142854 PlinthP5-142854 To suit PlinthP5 26

PDF Spec Info P5 plastic pit
PDF Spec Info PlinthP5 with lid
DWG DWG file PlinthP5
revit Revit file

P6/8 Enclosures
Description Part No SEEPL code Internal Opening Dim.
L x W x D (mm)
Total product
weight (kg)
P6 - plastic pit 75475 1268 x 455 x 616 33
P8 - plastic pit 75019 1268 x 455 x 836 42
PlinthP6/8 - concrete plinth 142236 1250 x 440 x 150 325
P6/8 - steel lid (Class B) 142241 PlinthP6-8-142241 To suit PlinthP6/8 44
P6/8 - steel lid (Class D) 142851 PlinthP6-8-142851 To suit PlinthP6/8 66

PDF Spec Info P6 plastic pit
PDF Spec Info P8 plastic pit
PDF Spec Info PlinthP6/8
DWG DWG file PlinthP6/8
revit Revit file

Accessories
Description Part No Weight
(kg)
Lid Lifting Tool 142232 0.5
Plastic Pit Expansion Tool 142233 4
ID Plates On Enquiry N/A
Route Marker Plates On Enquiry N/A
SCEC (SL3) Padlocks On Enquiry 0.5
Swing Arm On Enquiry 1
SCEC (SL1) approved precast concrete riser On Enquiry Variable
