Surface ducting channels
ACO offers light and heavy duty cable ducting systems. Both are available in 100mm, 200mm and 300mm nominal widths and consist of one metre length modular channels that are assembled to produce continuous runs. Lids are available in polymer concrete, steel and ductile iron to suit every application up to Class G (AS 3996).
Runs that are cast in situ (typically cable trunking systems intended for larger cables etc.) can be enclosed with trench run multipart access covers available for all load classes to Class G (AS 3996). Contact ACO for details.
- The CD series is ACO’s light duty cable ducting system.
- The CS series is ACO’s heavy duty cable ducting system.

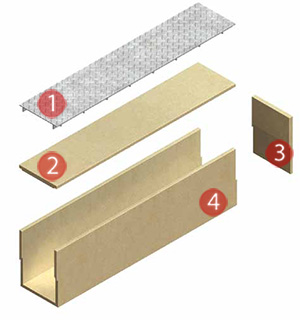

CD Series
– light duty cable ducting system
 | Steel lid (AS 3996 Class B) AS/NZS 4586 slip resistance rating: R10. IP4X (AS 60529) protection against ingress of foreign objects. |
 | Polymer concrete lid (AS 3996 Class A). IP4X (AS 60529) protection against ingress of foreign objects. |
 | Polymer concrete end cap. |
 | 1-metre long polymer concrete modular ducting channel. |

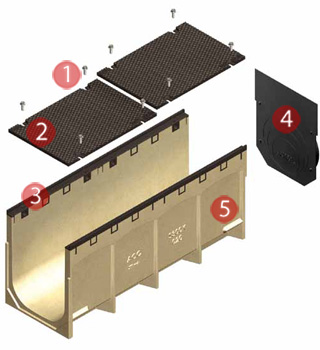

CS Series
– heavy duty cable ducting system
 | Ductile iron lid (up to AS 3996 Class G). IP4X (AS 60529) protection against ingress of foreign objects. |
 | M10 high tensile steel bolts with friction grip washers. |
 | Integrally cast-in ductile iron edge rail. |
 | Plastic end cap. |
 | 1-metre long polymer concrete modular ducting channel. |
Surface Ducting Channels Parts Tables
CD Series – light duty ducting system (1000mm length modular units)
Demo Content
CD1215 - W: 100mm x D: 145mm
| Internal dimensions (mm) |  |  | |||
|---|---|---|---|---|---|
| Length | Width | Depth | Channel with overlay lid | Channel with bolted lid | |
| CD1215 Ducting Channel | 1000 | 100 | 145 |  |  |
Channel Details
| Part No | Cover Weight (kg) | JPG | |
|---|---|---|---|
| CD1215 Ducting channel | 75622 | 14 |  |
| CD1215 End cap | 76625 | 0.6 |  |
Lid Details
| Part No | Cover Weight (kg) | JPG | |
|---|---|---|---|
| CD1215 Polymer concrete lid (AS 3996 Class A) | 75639 | 5 |  |
| CD1215 Steel lid (AS 3996 Class B) | 75643 | 5 |  |
CD2127 - W: 180mm x D: 240mm
| Internal dimensions (mm) |  |  | |||
|---|---|---|---|---|---|
| Length | Width | Depth | Channel with overlay lid | Channel with bolted lid | |
| CD2127 Ducting Channel | 1000 | 180 | 240 |  |  |
Channel Details
| Part No | Cover Weight (kg) | JPG | |
|---|---|---|---|
| CD2127 Ducting channel | 75664 | 31 |  |
| CD2127 End cap | 76238 | 1.2 |  |
Lid Details
| Part No | Cover Weight (kg) | JPG | |
|---|---|---|---|
| CD2127 Polymer concrete lid (AS 3996 Class A) | 75671 | 14 |  |
| CD2127 Steel lid (AS 3996 Class B) | 75688 | 9 |  |
CD3015 - W: 300mm x D: 130mm
| Internal dimension (mm) |  |  | |||
|---|---|---|---|---|---|
| Length | Width | Depth | Channel with overlay lid | Channel with bolted lid | |
| CD3015 Ducting Channel | 1000 | 300 | 130 |  |  |
Channel Details
| Part No | Cover Weight (kg) | JPG | |
|---|---|---|---|
| CD3015 Ducting channel | 75733 | 21 |  |
| CD3015 End cap | 76619 | 1.8 |  |
Lid Details
| Part No | Cover Weight (kg) | JPG | |
|---|---|---|---|
| CD3015 Polymer concrete lid (AS 3996 Class A) | 75740 | 17 |  |
| CD3015 Steel lid (AS 3996 Class B) | 75754 | 15 |  |
CS Series – heavy duty ducting system (1000mm length modular units)
Demo Content
CS100 - W: 100mm x D: 172mm
| Internal dimensions (mm) |  |  | |||
|---|---|---|---|---|---|
| Length | Width | Depth | Channel with overlay lid | Channel with bolted lid | |
| CS100 - CS010 Ducting Channel | 1000 | 100 | 172 |  |  |
Channel and Lid Details
| Part No | Cover Weight (kg) | Total Weight (kg) | JPG | |
|---|---|---|---|---|
| CS010 Ducting channel with ductile iron lid (AS 3996 Class G) | 02813 | 7 | 39 |  |
| CS100 End cap | 90396 | 0.3 |  | |
Spec InfoCS200 - W: 200mm x D: 260mm
| Internal dimensions (mm) |  |  | |||
|---|---|---|---|---|---|
| Length | Width | Depth | Channel with overlay lid | Channel with bolted lid | |
| CS200 - CS2000 Ducting Channel | 1000 | 200 | 260 |  |  |
Channel and Lid Details
| Part No | Cover Weight (kg) | Total Weight (kg) | JPG | |
|---|---|---|---|---|
| CS2000 Ducting channel with ductile iron lid (AS 3996 Class F) | 76537 | 15 | 82 |  |
| CS200 End cap | 95101 | 0.3 |  | |
Spec InfoCS300 - W: 300mm x D: 362mm or 482mm
| Internal dimensions (mm) |  |  | |||
|---|---|---|---|---|---|
| Length | Width | Depth | Channel with overlay lid | Channel with bolted lid | |
| CS300 - CS3000 Ducting Channel | 1000 | 300 | 362 |  |  |
| CS300 - CS3020 Ducting Channel | 1000 | 300 | 482 |  |  |
Channel and Lid Details
| Part No | Cover Weight (kg) | Total Weight (kg) | JPG | |
|---|---|---|---|---|
| CS3000 Ducting channel with ductile iron lid (AS 3996 Class E) | 76561 | 22 | 112 |  |
| CS3020 Ducting channel with ductile iron lid (AS 3996 Class E) | 76586 | 22 | 122 |  |
| CS300 End cap | 93849 | 1.2 |  | |
Spec InfoAccessories
Demo Content
Surface Ducting Identification
| Part No | Weight (kg) | JPG | |
|---|---|---|---|
| Brass plate - Electricity | 77416 | 0.05 |  |
| Brass plate - Communications | 77402 | 0.05 |  |
| Brass plate - Gas | 77420 | 0.05 |  |
Holesaws
| Part No | Weight kg | JPG | |
|---|---|---|---|
| Holesaw: sintered 95mm system - hex shaft | 142011 | 0.90 |  |
| Holesaw: sintered 117mm system - hex shaft | 142012 | 1.25 |  |
| Holesaw: sintered 127mm system - hex shaft | 142013 | 1.30 |  |
| Holesaw: sintered 152mm system - hex shaft | 142014 | 1.85 |  |
| Holesaw: sintered 180mm system - hex shaft | 142015 | 1.95 |  |
| Holesaw: sintered 95mm system - SDS | 142016 | 0.85 |  |
| Holesaw: sintered 117mm system - SDS | 142017 | 1.35 |  |
| Holesaw: sintered 127mm system - SDS | 142018 | 1.35 |  |
| Holesaw: sintered 152mm system - SDS | 142019 | 2.00 |  |
| Holesaw: sintered 180mm system - SDS | 142020 | 2.55 |  |
