Polyethylene moulded plastic pits
ACO polyethylene moulded plastic pits are lightweight, easy to cut and feature a ribbed construction for strength and durability.
Recommended for light-duty applications, these pits are robust, cost-effective and versatile.
Strength and structural performance
Polyethylene pits provide a practical solution for projects requiring reliable underground cable management without the weight and handling constraints associated with rigid or concrete enclosures.
Each plastic pit is designed to maintain structural integrity during installation and throughout its service life, particularly in locations where frequent access to cables, conduits or jointing spaces is required. The ribbed wall profile enhances stiffness under soil loading and supports consistent performance in variable ground conditions.
Installation versatility
The range includes multiple pit sizes, from compact options suited for simple cable drawing through to deeper and larger sizes for more complex uses. Sidewalls can be cut to accommodate conduit entries, allowing the enclosure to adapt to different cable routes as needed.
These plastic pits are enclosed with a choice of lids or access covers, manufactured from iron, steel, concrete or polymer concrete options to suit the required load class, security level and surface finish. Circular pits may also be available for niche areas such as traffic signal applications.
Compatibility with project requirements
Polyethylene pits are suited to projects where light cable enclosures are required without the need for heavy lifting equipment. Typical applications include electrical and communication networks routed through landscaped areas, footpaths or other locations with limited vehicle loading. Selection can be refined based on the required lid material type, level of security, load class and conduit configuration
Project enquiries
ACO provides expert services to support the correct selection of cable pits, access covers and related components. For technical support or project-specific guidance, contact the team today.
Polyethylene pits - features & benefits
 | Ductile iron Rhinocast® solid top cover (AS 3996 Class B) AS/NZS 4586 slip resistance rating: R10 Ductile iron Rhinocast® recessed cover (AS 3996 Class B) |
 | Steel Urbanfil® recessed cover (AS 3996 Class B) |
 | Steel Pavermate® recessed cover (AS 3996 Class B) |
 | Steel lid (AS 3996 Class B) AS/NZS 4586 slip resistance rating: R10. IP4X (AS 60529) protection against ingress of foreign objects if fitted with universal plug. If locking lid is required, contact ACO. |
 | Polymer concrete or cement concrete lid (AS 3996 Class A) AS/NZS 4586 slip resistance rating: up to R10. IP4X (AS 60529) protection against ingress of foreign objects if fitted with universal plug |
 | Strong and versatile. Continuous ribbed wall design for maximum wall strength and easy to handle. Pit walls contain cut-offs to alter the depth of the pit. |
 | Holesaw guides for conduit entry - holes can be cut anywhere on sidewalls. The maximum number of holes recommended per pit is limited by conduit quantity and size. For more information, contact ACO |
Polyethylene pits - range parts list
Rectangular pits
Type 1 | 238mm x 518mm x 400mm
| Nominal opening (mm) | Nominal depth (mm) |  |
 |
 |
 |
||
|---|---|---|---|---|---|---|---|
| Length | Width | No Riser | 1 Riser | Pit with Lid |
Pit with Riser & Lid |
Pit with Access Cover |
Pit with Riser & Access Cover |
| 520 | 240 | 400 | 600 |  |
|
|
|
Pit Details
| Part No | Depth (mm) | Weight (kg) | JPG | DWG | |
|---|---|---|---|---|---|
| Type 1 polyethylene pit | 75858 | 400 | 3.0 |  |
 |
Lids & Access Covers Details
| Part No | Cover weight (kg) |
Total weight (kg) |
JPG | |
|---|---|---|---|---|
| Cement concrete lid (AS 3996 Cl A) - Blank | 75860 | 7 | 7 |  |

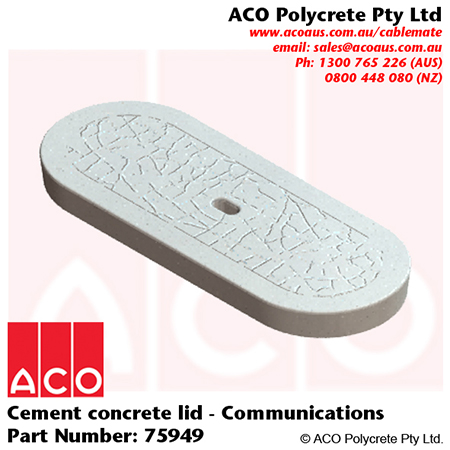

| Cement concrete lid (AS 3996 Cl A) - Communications | 75861 | 7 | 7 |  |
| Cement concrete lid (AS 3996 Cl A) - Electricity | 75862 | 7 | 7 |  |
| Steel lid (AS 3996 Cl B) | 70120 | 3 | 3 |  |
| Steel Tilemate infill cover (AS 3996 Cl B) | 80150 | 8 | 13 |  |
| Steel Pavermate infill cover (AS 3996 Cl B) | 80151 | 8 | 13 |  |
| Ductile iron Rhinocast infill cover (AS 3996 Cl B) | 85014 | 28 | 40 |  |
| Ductile iron Rhinocast solid top cover (AS 3996 Cl B) | 85249 | 20 | 44 |  |
Spec InfoType 2 | 290mm x 560mm x 575mm
| Nominal opening (mm) | Nominal depth (mm) | |
|
|
|
||
|---|---|---|---|---|---|---|---|
| Length | Width | No Riser | 1 Riser | Pit with Lid |
Pit with Riser & Lid |
Pit with Access Cover |
Pit with Riser & Access Cover |
| 660 | 290 | 575 | 775 | |
Info | |
Info |
Pit Details
| Part No | Depth (mm) | Weight (kg) | JPG | DWG | |
|---|---|---|---|---|---|
| Type 2 polyethylene pit | 75946 | 575 | 6.0 |  |
|
Lids & Access Covers Details
| Part No | Cover weight (kg) |
Total weight (kg) |
JPG | |
|---|---|---|---|---|
| Cement concrete lid (AS 3996 Cl A) - Blank | 75948 | 13 | 13 |  |
| Cement concrete lid (AS 3996 Cl A) - Communications | 75949 | 13 | 13 |  |
| Cement concrete lid (AS 3996 Cl A) - Electricity | 75950 | 13 | 13 |  |
| Cement concrete lid (AS 3996 Cl A) – NBN | 141814 | 13 | 15 | |
| Cement concrete lid (AS 3996 Cl A) – NBN Electricity | 142283 | 13 | 15 | |
| Steel lid (AS 3996 Cl B) | 70220 | 6 | 6 |  |
| Steel Tilemate infill cover (AS 3996 Cl B) | 81225 | 11 | 16 |  |
| Steel Pavermate infill cover (AS 3996 Cl B) | 81340 | 11 | 16 |  |
| Ductile iron Rhinocast infill cover (AS 3996 Cl B) | 85037 | 28 | 49 |  |
| Ductile iron Rhinocast solid top cover (AS 3996 Cl B) | 85236 | 28 | 47 |  |
Type 3 | 335mm x 565mm x 530mm
| Nominal opening (mm) | Nominal depth (mm) | |
|
|
|
||
|---|---|---|---|---|---|---|---|
| Length | Width | No Riser | 1 Riser | Pit with Lid |
Pit with Riser & Lid |
Pit with Access Cover |
Pit with Riser & Access Cover |
| 565 | 335 | 530 | 830 | |
Info | |
Info |
Pit Details
| Part No | Depth (mm) | Weight (kg) | JPG | DWG | |
|---|---|---|---|---|---|
| Type 3 polyethylene pit | 75865 | 530 | 6.5 |  |
|
Lids & Access Covers Details
| Part No | Cover weight (kg) |
Total weight (kg) |
JPG | |
|---|---|---|---|---|
| Cement concrete lid (AS 3996 Cl A) - Blank | 75881 | 13 | 13 |  |
| Cement concrete lid (AS 3996 Cl A) - Communications | 75898 | 13 | 13 |  |
| Cement concrete lid (AS 3996 Cl A) - Electricity | 75906 | 13 | 13 |  |
| Steel lid (AS 3996 Cl B) | 70320 | 6 | 6 |  |
| Steel Tilemate infill cover (AS 3996 Cl B) | 81225 | 11 | 16 | |
| Steel PowerLok lid (AS 3996 Cl B) | 70330 | 9 | 9 |  |
| Steel Urbanfil infill cover (AS 3996 Cl B) | 81225 | 11 | 16 | |
| Steel Pavermate infill cover (AS 3996 Cl B) | 81340 | 11 | 16 | |
| Ductile iron Rhinocast infill cover (AS 3996 Cl B) | 85014 | 28 | 40 | |
| Ductile iron Rhinocast solid top cover (AS 3996 Cl B) | 85249 | 20 | 44 | |
Type 4 | 410mm x 715mm x 800mm
| Nominal opening (mm) | Nominal depth (mm) | |
|
|
|
||
|---|---|---|---|---|---|---|---|
| Length | Width | No Riser | 1 Riser | Pit with Lid |
Pit with Riser & Lid |
Pit with Access Cover |
Pit with Riser & Access Cover |
| 715 | 410 | 800 | 1100 | |
Info | |
Info |
Pit Details
| Part No | Depth (mm) | Weight (kg) | JPG | DWG | |
|---|---|---|---|---|---|
| Type 4 polyethylene pit | 75957 | 800 | 12.0 |  |
|
Lids & Access Covers Details
| Part No | Cover weight (kg) |
Total weight (kg) |
JPG | |
|---|---|---|---|---|
| Cement concrete lid (AS 3996 Cl A) - Blank | 75979 | 21 | 21 |  |
| Cement concrete lid (AS 3996 Cl A) - Communications | 75983 | 21 | 21 |  |
| Cement concrete lid (AS 3996 Cl A) - Electricity | 75990 | 21 | 21 |  |
| Steel lid (AS 3996 Cl B) | 70420 | 11 | 11 |  |
| Steel PowerLok lid (AS 3996 Cl B) | 70430 | 14 | 14 |  |
| Steel Tilemate infill cover (AS 3996 Cl B) | 80450 | 11 | 16 |  |
| Steel Pavermate infill cover (AS 3996 Cl B) | 80451 | 11 | 17 |  |
| Ductile iron Rhinocast infill cover (AS 3996 Cl B) | 85037 | 28 | 49 | |
| Ductile iron Rhinocast solid top cover (AS 3996 Cl B) | 85236 | 28 | 47 | |
Type 5 side retro ribs | 463mm x 713mm x 635mm
| Nominal opening (mm) | Nominal depth (mm) | |
|
|
|
||
|---|---|---|---|---|---|---|---|
| Length | Width | No Riser | 1 Riser | Pit with Lid |
Pit with Riser & Lid |
Pit with Access Cover |
Pit with Riser & Access Cover |
| 715 | 465 | 635 | 935 | |
Info | |
Info |
Pit Details
| Part No | Depth (mm) | Weight (kg) | JPG | DWG | |
|---|---|---|---|---|---|
| Type 5 polyethylene pit (retroribs side only) | 76042 | 635 | 10.0 |  |
|
Lids & Access Covers Details
| Part No | Cover weight (kg) |
Total weight (kg) |
JPG | |
|---|---|---|---|---|
| Cement concrete lid (AS 3996 Cl A) - Blank | 76069 | 28 | 28 |  |
| Cement concrete lid (AS 3996 Cl A) - Communications | 76073 | 28 | 28 |  |
| Cement concrete lid (AS 3996 Cl A) - Electricity | 76080 | 28 | 28 |  |
| Cement concrete lid (AS 3996 Cl A) – NBN | 141815 | 28 | 28 | |
| Steel lid (AS 3996 Cl B) | 70520 | 11 | 11 |  |
| Steel PowerLok lid (AS 3996 Cl B) | 70530 | 15 | 15 |  |
| Steel Tilemate infill cover (AS 3996 Cl B) | 80450 | 11 | 16 | |
| Steel Pavermate infill cover (AS 3996 Cl B) | 80451 | 11 | 17 | |
| Ductile iron Rhinocast infill cover (AS 3996 Cl B) | 85037 | 28 | 49 | |
| Ductile iron Rhinocast solid top cover (AS 3996 Cl B) | 85236 | 28 | 47 | |
Type 5 full retro ribs | 463mm x 713mm x 635mm
| Nominal opening (mm) | Nominal depth (mm) | |
|
|
|
||
|---|---|---|---|---|---|---|---|
| Length | Width | No Riser | 1 Riser | Pit with Lid |
Pit with Riser & Lid |
Pit with Access Cover |
Pit with Riser & Access Cover |
| 715 | 465 | 635 | 935 | |
Info | |
Info |
Pit Details
| Part No | Depth (mm) | Weight (kg) | JPG | DWG | |
|---|---|---|---|---|---|
| Type 5 polyethylene pit (retroribs full) | 7604299 | 635 | 10.0 |  |
|
Lids & Access Covers Details
| Part No | Cover weight (kg) |
Total weight (kg) |
JPG | |
|---|---|---|---|---|
| Cement concrete lid (AS 3996 Cl A) - Blank | 76069 | 28 | 28 | |
| Cement concrete lid (AS 3996 Cl A) - Communications | 76073 | 28 | 28 | |
| Cement concrete lid (AS 3996 Cl A) - Electricity | 76080 | 28 | 28 | |
| Cement concrete lid (AS 3996 Cl A) – NBN | 141815 | 28 | 28 | |
| Steel lid (AS 3996 Cl B) | 70520 | 11 | 11 | |
| Steel PowerLok lid (AS 3996 Cl B) | 70530 | 15 | 15 | |
| Steel Tilemate infill cover (AS 3996 Cl B) | 80450 | 11 | 16 | |
| Steel Pavermate infill cover (AS 3996 Cl B) | 80451 | 11 | 17 | |
| Ductile iron Rhinocast infill cover (AS 3996 Cl B) | 85037 | 28 | 49 | |
| Ductile iron Rhinocast solid top cover (AS 3996 Cl B) | 85236 | 28 | 47 | |
Type 6 | 565mm x 1378mm x 670mm
| Nominal opening (mm) | Nominal depth (mm) | |
|
|
|
||
|---|---|---|---|---|---|---|---|
| Length | Width | No Riser | 1 Riser | Pit with Lid |
Pit with Riser & Lid |
Pit with Access Cover |
Pit with Riser & Access Cover |
| 1380 | 565 | 670 | 970 | |
Info | |
Info |
Pit Details
| Part No | Depth (mm) | Weight (kg) | JPG | DWG | |
|---|---|---|---|---|---|
| Type 6 polyethylene pit | 75475 | 670 | 33.0 |  |
|
Lids & Access Covers Details
| Part No | Cover weight (kg) |
Total weight (kg) |
JPG | |
|---|---|---|---|---|
| Cement concrete 2-part lid (AS 3996 Cl A) - Blank | 75010 | 33 | 69 |  |
| Cement concrete 2-part lid (AS 3996 Cl A) - Communications | 75011 | 33 | 69 |  |
| Cement concrete 2-part lid (AS 3996 Cl A) - Electricity | 75012 | 33 | 69 |  |
| Cement concrete 2 part lid (AS 3996 Cl A) – NBN | 141837 | 33 | 69 | |
| Steel 2-part lid (AS 3996 Cl B) | 76820 | 15 | 31 |  |
| Steel PowerLok 2-part lid (AS 3996 Cl B) | 76830 | 20 | 40 |  |
| Steel Tilemate 2-part infill cover (AS 3996 Cl B) | 82567 | 13 | 39 |  |
| Steel Pavermate 2-part infill cover (AS 3996 Cl B) | 82373 | 15 | 41 |  |
| Ductile iron Rhinocast 2-part infill cover (AS 3996 Cl B) | 85433 | 30 | 91 |  |
| Ductile iron Rhinocast 2-part solid top cover (AS 3996 Cl B) | 86853 | 28 | 47 |  |
Type 7 | 565mm x 1020mm x 1145mm
| Nominal opening (mm) | Nominal depth (mm) | |
|
|
|
||
|---|---|---|---|---|---|---|---|
| Length | Width | No Riser | 1 Riser | Pit with Lid |
Pit with Riser & Lid |
Pit with Access Cover |
Pit with Riser & Access Cover |
| 1020 | 565 | 1145 | 1545 | |
Info | |
Info |
Pit Details
| Part No | Depth (mm) | Weight (kg) | JPG | DWG | |
|---|---|---|---|---|---|
| Type 7 polyethylene pit | 76132 | 1145 | 33.0 |  |
|
Lids & Access Covers Details
| Part No | Cover weight (kg) |
Total weight (kg) |
JPG | |
|---|---|---|---|---|
| Cement concrete 2-part lid (AS 3996 Cl A) - Blank | 75155 | 23 | 49 |  |
| Cement concrete 2-part lid (AS 3996 Cl A) - Communications | 75156 | 23 | 49 |  |
| Cement concrete 2-part lid (AS 3996 Cl A) - Electricity | 75157 | 23 | 49 |  |
| Steel lid (AS 3996 Cl B) | 70720 | 21 | 21 |  |
| Steel PowerLok lid (AS 3996 Cl B) | 70730 | 24 | 24 |  |
| Steel Tilemate 2-part infill cover (AS 3996 Cl B) | 82606 | 16 | 47 |  |
| Steel Pavermate 2-part infill cover (AS 3996 Cl B) | 82398 | 17 | 48 |  |
| Ductile iron Rhinocast 2-part infill cover (AS 3996 Cl B) | 85444 | 28 | 89 |  |
| Ductile iron Rhinocast 2-part solid top cover (AS 3996 Cl B) | 80753 | 28 | 83 |  |
Type 8 side retro ribs | 565mm x 1378mm x 890mm
| Nominal opening (mm) | Nominal depth (mm) | |
|
|
|
||
|---|---|---|---|---|---|---|---|
| Length | Width | No Riser | 1 Riser | Pit with Lid |
Pit with Riser & Lid |
Pit with Access Cover |
Pit with Riser & Access Cover |
| 1380 | 565 | 890 | 1290 | |
Info | |
Info |
Pit Details
| Part No | Depth (mm) | Weight (kg) | JPG | DWG | |
|---|---|---|---|---|---|
| Type 8 polyethylene pit | 75018 | 890 | 42.0 |  |
|
Lids & Access Covers Details
| Part No | Cover weight (kg) |
Total weight (kg) |
JPG | |
|---|---|---|---|---|
| Cement concrete 2-part lid (AS 3996 Cl A) - Blank | 75010 | 33 | 69 | |
| Cement concrete 2-part lid (AS 3996 Cl A) - Communications | 75011 | 33 | 69 | |
| Cement concrete 2-part lid (AS 3996 Cl A) - Electricity | 75012 | 33 | 69 | |
| Cement concrete 2-part lid (AS 3996 Cl A) – NBN | 141837 | 33 | 69 | |
| Steel 2-part lid (AS 3996 Cl B) | 76820 | 15 | 31 | |
| Steel PowerLok 2-part lid (AS 3996 Cl B) | 76830 | 20 | 41 | |
| Steel Tilemate 2-part infill cover (AS 3996 Cl B) | 82567 | 13 | 39 | |
| Steel Pavermate 2-part infill cover (AS 3996 Cl B) | 82373 | 15 | 41 | |
| Ductile iron Rhinocast 2-part infill cover (AS 3996 Cl B) | 85433 | 30 | 91 | |
| Ductile iron Rhinocast 2-part solid top cover (AS 3996 Cl B) | 86853 | 28 | 89 | |
Type 8 full retro ribs | 565mm x 1378mm x 890mm
| Nominal opening (mm) | Nominal depth (mm) | |
|
|
|
||
|---|---|---|---|---|---|---|---|
| Length | Width | No Riser | 1 Riser | Pit with Lid |
Pit with Riser & Lid |
Pit with Access Cover |
Pit with Riser & Access Cover |
| 1380 | 565 | 890 | 1290 | |
Info | |
Info |
Pit Details
| Part No | Depth (mm) | Weight (kg) | JPG | DWG | |
|---|---|---|---|---|---|
| Type 8 polyethylene pit | 75019 | 890 | 42.0 |  |
|
Lids & Access Covers Details
| Part No | Cover weight (kg) |
Total weight (kg) |
JPG | |
|---|---|---|---|---|
| Cement concrete 2-part lid (AS 3996 Cl A) - Blank | 75010 | 33 | 69 | |
| Cement concrete 2-part lid (AS 3996 Cl A) - Communications | 75011 | 33 | 69 | |
| Cement concrete 2-part lid (AS 3996 Cl A) - Electricity | 75012 | 33 | 69 | |
| Cement concrete 2-part lid (AS 3996 Cl A) – NBN | 141837 | 33 | 69 | |
| Steel 2-part lid (AS 3996 Cl B) | 76820 | 15 | 31 | |
| Steel PowerLok 2-part lid (AS 3996 Cl B) | 76830 | 20 | 41 | |
| Steel Tilemate 2-part infill cover (AS 3996 Cl B) | 82567 | 13 | 39 | |
| Steel Pavermate 2-part infill cover (AS 3996 Cl B) | 82373 | 15 | 41 | |
| Ductile iron Rhinocast 2-part infill cover (AS 3996 Cl B) | 85433 | 30 | 91 | |
| Ductile iron Rhinocast 2-part solid top cover (AS 3996 Cl B) | 86853 | 28 | 89 | |
Type 9 | 565mm x 2040mm x 898mm
| Nominal opening (mm) | Nominal depth (mm) | |
|
|
|
||
|---|---|---|---|---|---|---|---|
| Length | Width | No Riser | 1 Riser | Pit with Lid |
Pit with Riser & Lid |
Pit with Access Cover |
Pit with Riser & Access Cover |
| 2035 | 565 | 890 | contact ACO | |
Info | |
Info |
Pit Details
| Part No | Depth (mm) | Weight (kg) | JPG | |
|---|---|---|---|---|
| Type 9 polyethylene pit | 75099 | 898 | 60.0 |  |
Lids & Access Covers Details
| Part No | Cover weight (kg) |
Total weight (kg) |
JPG | |
|---|---|---|---|---|
| Cement concrete 3-part lid (AS 3996 Cl A) - Blank | 75235 | 38 | 118 |  |
| Cement concrete 3-part lid (AS 3996 Cl A) - Communications | 75236 | 38 | 118 |  |
| Cement concrete 3-part lid (AS 3996 Cl A) - Electricity | 75237 | 38 | 118 |  |
| Cement concrete 3-part lid (AS 3996 Cl A) – NBN | 141831 | 38 | 118 | |
| Steel 3-part lid (AS 3996 Cl B) | 71920 | 15 | 45 |  |
| Steel PowerLok 3-part lid (AS 3996 Cl B) | 71930 | 20 | 58 |  |
| Steel Tilemate 3-part infill cover (AS 3996 Cl B) | 75109 | 13 | 56 |  |
| Steel Pavermate 3-part infill cover (AS 3996 Cl B) | 80951 | 15 | 58 |  |
| Ductile iron Rhinocast 3-part infill cover (AS 3996 Cl B) | 80952 | 30 | 132 |  |
| Ductile iron Rhinocast 3-part solid top cover (AS 3996 Cl B) | 80953 | 28 | 129 |  |
Type 53 | 291mm x 541mm x 448mm
| Nominal opening (mm) | Nominal depth (mm) | |
|
|
|
||
|---|---|---|---|---|---|---|---|
| Length | Width | No Riser | 1 Riser | Pit with Lid |
Pit with Riser & Lid |
Pit with Access Cover |
Pit with Riser & Access Cover |
| 540 | 295 | 455 |  |
|
|
contact ACO | |
Pit Details
| Part No | Depth (mm) | Weight (kg) | JPG | DWG | |
|---|---|---|---|---|---|
| Type 53 polyethylene pit | 75785 | 448 | 3 |  |
|
Lids & Access Covers Details
| Part No | Cover weight (kg) |
Total weight (kg) |
JPG | |
|---|---|---|---|---|
| Polymer concrete lid (AS 3996 Cl A) - Blank | 75806 | 6 | 6 |  |
| Polymer concrete lid (AS 3996 Cl A) - Communications | 75813 | 6 | 6 |  |
| Polymer concrete lid (AS 3996 Cl A) - Electricity | 75829 | 6 | 6 |  |
| Steel lid (AS 3996 Cl B) | 75320 | 4 | 4 |  |
Square & circular pits
Type 43 | 430mm Diameter x 606mm
| Nominal opening (mm) | Nominal depth (mm) | |
|
|
|
||
|---|---|---|---|---|---|---|---|
| Length | Width | No Riser | 1 Riser | Pit with Lid |
Pit with Riser & Lid |
Pit with Access Cover |
Pit with Riser & Access Cover |
| 430 diameter | 606 | 744 | |
|
Contact ACO | |
|
Pit Details
| Part No | Depth (mm) | Weight (kg) | JPG | DWG | |
|---|---|---|---|---|---|
| Type 43 polyethylene pit | 74308 | 606 | 4 |  |
|
| Type 43 polyethylene pit (without conduit holes) | 74309 | 606 | 4 | - | - |
Lids & Access Covers Details
| Part No | Cover weight (kg) |
Total weight (kg) |
JPG | |
|---|---|---|---|---|
| Cement concrete lid (AS 3996 Cl A) - Blank | 76221 | 18 | 18 |  |
| Cement concrete lid (AS 3996 Cl A) - Communications | 74592 | 18 | 18 |  |
| Cement concrete lid (AS 3996 Cl A) - Electricity | 74312 | 18 | 18 |  |
| Steel lid (AS 3996 Cl B) | 74320 | 6 | 6 |  |
Type 55 | 560mm x 560mm x 510mm
| Nominal opening (mm) | Nominal depth (mm) | |
|
|
|
||
|---|---|---|---|---|---|---|---|
| Length | Width | No Riser | 1 Riser | Pit with Lid |
Pit with Riser & Lid |
Pit with Access Cover |
Pit with Riser & Access Cover |
| 560 | 560 | 505 | 635 | |
Info | |
Info |
Pit Details
| Part No | Depth (mm) | Weight (kg) | JPG | DWG | |
|---|---|---|---|---|---|
| Type 55 polyethylene pit | 76253 | 510 | 8 |  |
|
Lids & Access Covers Details
| Part No | Cover weight (kg) |
Total weight (kg) |
JPG | |
|---|---|---|---|---|
| Polymer concrete lid (AS 3996 Cl A) - Blank | 76279 | 19 | 19 |  |
| Polymer concrete lid (AS 3996 Cl A) - Communications | 76285 | 19 | 19 |  |
| Polymer concrete lid (AS 3996 Cl A) - Electricity | 76297 | 19 | 19 |  |
| Steel lid (AS 3996 Cl B) | 75520 | 13 | 13 |  |
| Steel PowerLok lid (AS 3996 Cl B) | 75530 | 17 | 17 |  |
| Steel Tilemate infill cover (AS 3996 Cl B) | 81565 | 15 | 22 |  |
| Steel Pavermate infill cover (AS 3996 Cl B) | 81948 | 18 | 24 |  |
| Ductile iron Rhinocast infill cover (AS 3996 Cl B) | 85045 | 36 | 60 |  |
| Ductile iron Rhinocast solid top cover (AS 3996 Cl B) | 85222 | 33 | 63 |  |
Type 77 | 710mm x 710mm x 655mm
| Nominal opening (mm) | Nominal depth (mm) | |
|
|
|
||
|---|---|---|---|---|---|---|---|
| Length | Width | No Riser | 1 Riser | Pit with Lid |
Pit with Riser & Lid |
Pit with Access Cover |
Pit with Riser & Access Cover |
| 710 | 710 | 660 | 960 | |
Info | |
Info |
Pit & Riser Details
| Part No | Depth (mm) | Weight (kg) | JPG | DWG | |
|---|---|---|---|---|---|
| Type 77 polyethylene pit | 76344 | 655 | 13 |  |
|
| Type 77 polymer concrete riser (adds 300mm to pit depth) | 76368 | 350 | 47 |  |
|
Lids & Access Covers Details
| Part No | Cover weight (kg) |
Total weight (kg) |
JPG | |
|---|---|---|---|---|
| Polymer concrete lid (AS 3996 Cl A) - Blank | 76382 | 31 | 31 |  |
| Polymer concrete lid (AS 3996 Cl A) - Communications | 76396 | 31 | 31 |  |
| Polymer concrete lid (AS 3996 Cl A) - Electricity | 76409 | 31 | 31 |  |
| Steel lid (AS 3996 Cl B) | 77720 | 20 | 20 |  |
| Steel PowerLok lid (AS 3996 Cl B) | 77730 | 25 | 25 |  |
| Steel Tilemate infill cover (AS 3996 Cl B) | 81601 | 24 | 32 |  |
| Steel Pavermate infill cover (AS 3996 Cl B) | 81372 | 25 | 33 |  |
| Ductile iron Rhinocast infill cover (AS 3996 Cl B) | 85061 | 60 | 87 |  |
| Ductile iron Rhinocast solid top cover (AS 3996 Cl B) | 85274 | 60 | 91 |  |
Pit accessories
Pit Identification
| Part No | Weight (kg) | JPG | |
|---|---|---|---|
| Brass plate - Electricity | 77416 | 0.05 |  |
| Brass plate - Communications | 77402 | 0.05 |  |
| Brass plate - Gas | 77420 | 0.05 |  |
PowerLok® Assembly
| Part No | Weight (kg) | JPG | |
|---|---|---|---|
| PowerLok® | 76510 | 0.80 |  |
Pit Maintenance
| Part No | Weight (kg) | JPG | |
|---|---|---|---|
| PowerLok® tool | 01318 | 0.20 |  |
| Cement concrete lid lifter | 84307 | 1.15 |  |
| Universal short lifting key | 84306 | 0.40 |  |
| Urbanfil®/ Pavermate®: allen locking key | 84313 | 0.25 |  |
| Rhinocast®: lifting key - short handle (pair) | 84654 | 3.60 |  |
| Rhinocast®: lifting key - long handle (pair) | 84854 | 8.10 |  |

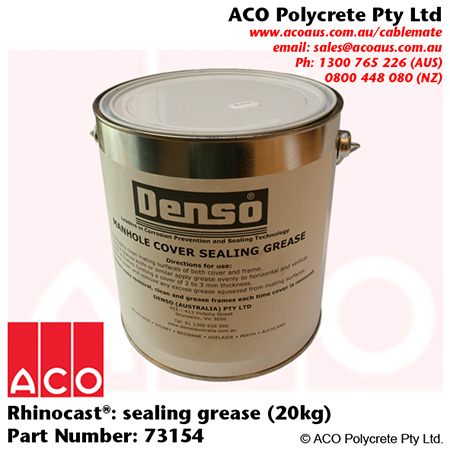

| Rhinocast®: sealing grease 4kg | 73131 | 4.40 |  |
Keyhole/IP Protection
| Part No | Weight (kg) | JPG | |
|---|---|---|---|
| Universal plug | 84625 | negligible |  |
| Urbanfil®/Pavermate®: round grey plastic caps | 84329 | negligible |  |
| Urbanfil®/Pavermate®: round gold plastic caps | 84334 | negligible |  |
| Rhinocast®: rectangular long red plastic caps | 84622 | negligible |  |
| Rhinocast®: rectangular short red plastic caps | 84620 | negligible |  |
| Rhinocast®: round red plastic caps | 84626 | negligible |  |
