Urbanfil® - Tilemate (shallow pan access covers)
A range of standard depth steel recessed cover & frame systems for use with tiles, concrete and epoxy floors
Tilemate is available in single part, 2 part, 3 part, trench run and multipart configurations up to class B80kN (AS 3996).
The range comprises square and rectangular infill access covers manufactured from hot dip galvanised steel. The steel base is fitted with reinforcing bars to provide flexural strength with concrete poured in situ.
Brass edging is an option for aesthetic applications.
Important note: To accommodate tiles, covers have an overall pan depth of 85mm (and 70mm at the frame edge). However as concrete is integral to the strength of the cover, pavers need to be bedded with concrete to a minimum depth of 45mm.
Urbanfil® Tilemate - single part
Features & benefits
 | 4 High tensile steel M16 recessed socketed locking bolts per cover with plastic cap to protect from dirt ingress. |
 | 12mm reinforcing bars on class B covers |
 | Optional brass decorative edge |
 | Cover depth allows for sufficient bedding concrete. |
 | Solid base cover for easy installation of infill materials |
 | Polyethylene seal provides a water and gas seal without the need for grease. |
 | Angled 2mm thick galvanised steel angle frame allows cover removal in all 4 directions |
 | Concrete anchors on all frames provide excellent fixing into surrounding concrete |
Urbanfil® Tilemate - two part
Features & benefits
| 4 High tensile steel M16 recessed socketed locking bolts per cover with plastic cap to protect from dirt ingress. |
| Covers do not need to be the same length, if widths are the same, any standard covers can be combined to create 2 – part units |
| 12mm reinforcing bars on class B covers. |
| Optional brass decorative edge around frame and cover edges. |
| Covers do not need to be the same length, if widths are the same, any standard covers can be combined to create 2 – part units |
| 2mm thick galvanised steel angle frame to fit around both covers with removable cross bar to support covers and provide a seal and locking bar for centre corners, also acts as a guide for correct positioning. Covers are removable in all 4 directions |
| Cover depth allows for sufficient bedding concrete. |
| Solid base cover for easy installation of infill materials |
 | Concrete anchors on all frames provide excellent fixing into surrounding concrete |
Urbanfil® Tilemate - Product details
| Type | Part No. | C/O1 WxL (mm) |
O/A1 WxL (mm) |
O/A1 Depth (mm) |
Cover Wgt (kg) |
O/A1 Wgt (kg) |
Decorative Edging2 |
Locking Option3 |
JPG |
|---|---|---|---|---|---|---|---|---|---|
| TM24B | 80150 | 200 x 450 | 323 x 573 | 85 | 8.0 | 13.0 | BE | SB |  |
| TM33B | 81686 | 300 x 300 | 423 x 423 | 85 | 7.1 | 11.9 | BE | SB |  |
| TM36B | 81225 | 300 x 600 | 423 x 723 | 85 | 11.0 | 16.0 | BE | SB |  |

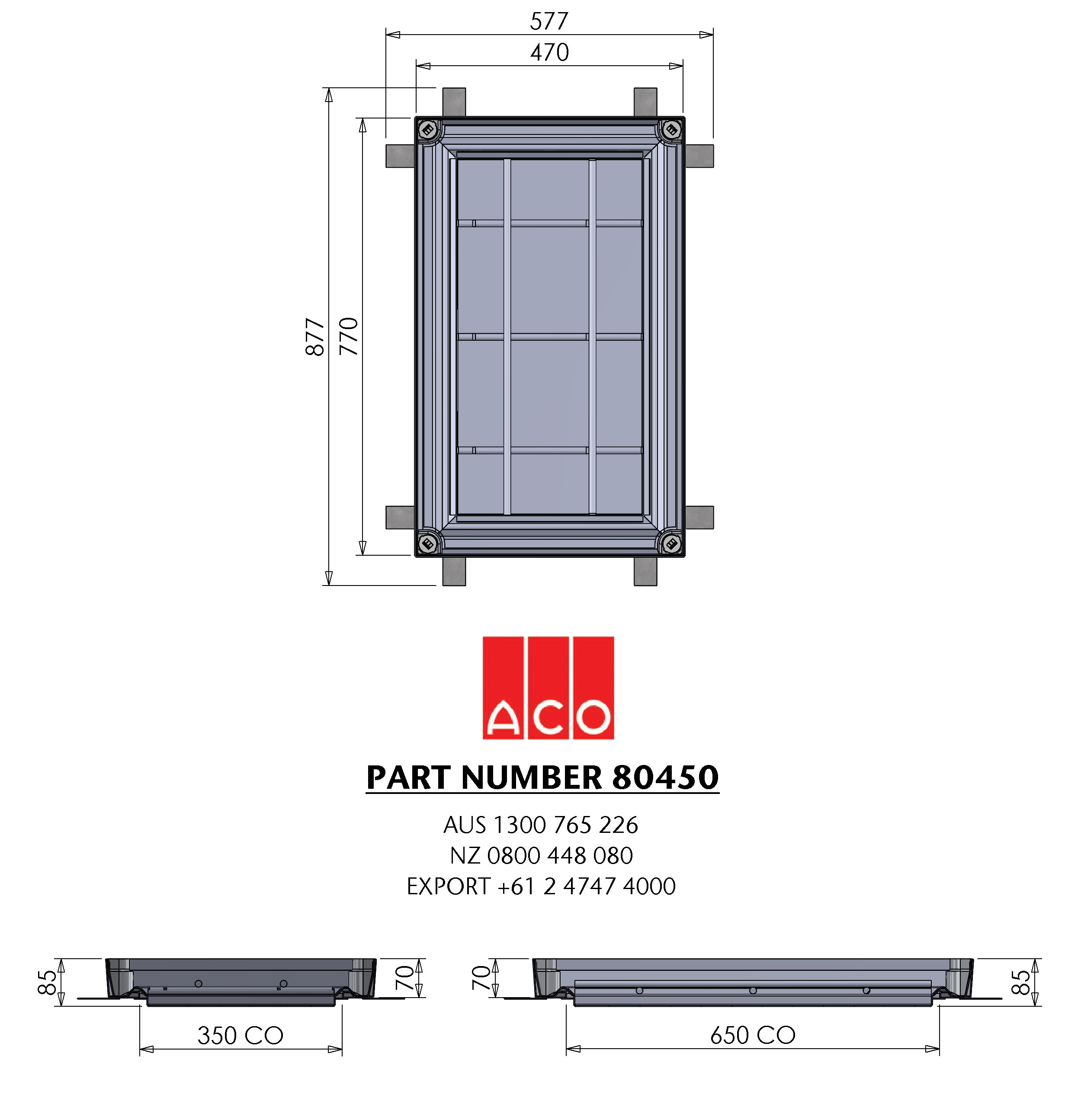

| TM365B | 80450 | 350 x 650 | 473 x 773 | 85 | 11.0 | 16.0 | BE | SB |  |
| TM44B | 81520 | 450 x 450 | 573 x 573 | 85 | 10.7 | 16.8 | BE | SB |  |

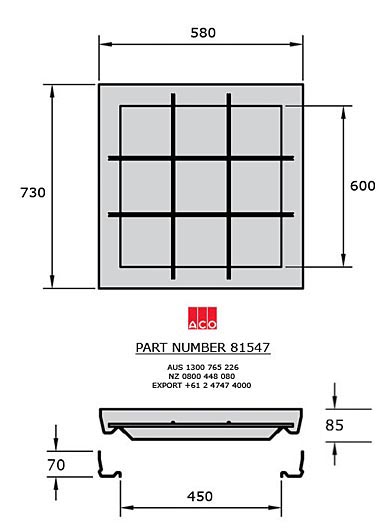

| TM46B | 81547 | 450 x 600 | 573 x 723 | 85 | 13.2 | 19.9 | BE | SB |  |
| TM66B | 81565 | 600 x 600 | 723 x 723 | 85 | 15.7 | 23.0 | BE | SB |  |
| TM67B | 81586 | 600 x 750 | 723 x 873 | 85 | 18.6 | 26.7 | BE | SB |  |
| TM69B | 82018 | 600 x 900 | 723 x 1023 | 85 | 20.9 | 29.6 | BE | SB |  |

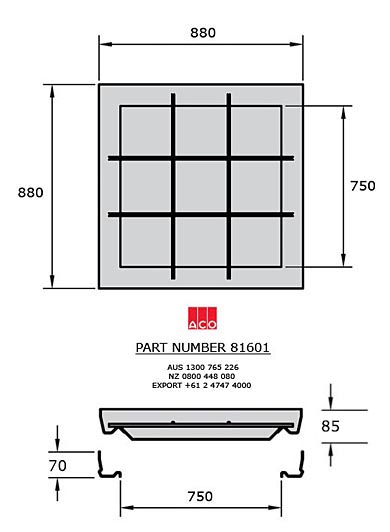

| TM77B | 81601 | 750 x 750 | 873 x 873 | 85 | 21.5 | 30.2 | BE | SB |  |
| TM94B | 81661 | 900 x 450 | 1023 x 573 | 85 | 17.6 | 25.7 | BE | SB |  |
| TM99B | 81645 | 900 x 900 | 1023 x 1023 | 85 | 27.6 | 37.5 | BE | SB |  |
BIM Model
1. C/O = Clear opening O/A = Overall
2. Decorative Brass (BE) can be added - just specify BE.
3. Optional security locking bolts are available for security applications - specify Security Bolts (SB) after part no.
| Part No | Weight (kg) | JPG | |
|---|---|---|---|
| Universal short lifting key | 84306 | 0.40 |  |
| Urbanfil®/Pavermate®: allen locking key | 84313 | 0.25 |  |
| Type | Part No. | C/O1 WxL (mm) |
O/A1 WxL (mm) |
O/A1 Depth (mm) |
Cover Wgt (kg) |
O/A1 Wgt (kg) |
Decorative Edging2 |
Locking Option3 |
JPG |
|---|---|---|---|---|---|---|---|---|---|
| TM2410B | 82521 | 450 x 1020 | 573 x 1143 | 85 | 7.1/7.1 | 33.0 | BE | SB |  |
| TM2411B | 82540 | 450 x 1170 | 573 x 1293 | 85 | 7.1/10.7 | 36.1 | BE | SB |  |
| TM2413B | 82567 | 450 x 1320 | 573 x 1443 | 85 | 13.2/13.2 | 39.2 | BE | SB |  |
| TM2610B | 82585 | 600 x 1020 | 723 x 1143 | 85 | 13.2/13.2 | 39.2 | BE | SB |  |
| TM2611B | 82606 | 600 x 1170 | 723 x 1293 | 85 | 13.2/15.7 | 39.9 | BE | SB |  |
| TM2613B | 82628 | 600 x 1320 | 723 x 1443 | 85 | 15.7/15.7 | 45.5 | BE | SB |  |
| TM2614B | 82640 | 600 x 1470 | 723 x 1593 | 85 | 15.7/18.6 | 49.1 | BE | SB |  |
| TM2616B | 82665 | 600 x 1620 | 723 x 1743 | 85 | 18.6/18.6 | 52.0 | BE | SB |  |
| TM2617B | 82681 | 600 x 1770 | 723 x 1893 | 85 | 18.6/20.9 | 55.6 | BE | SB |  |
| TM2619B | 82706 | 600 x 1920 | 723 x 2043 | 85 | 20.9/20.9 | 58.6 | BE | SB |  |

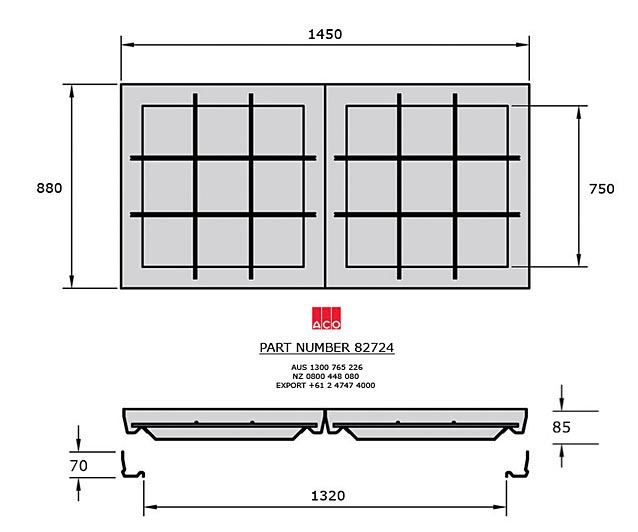

| TM2713B | 82724 | 750 x 1320 | 873 x 1443 | 85 | 18.6/18.6 | 52.7 | BE | SB |  |
| TM2714B | 82745 | 750 x 1470 | 873 x 1593 | 85 | 18.6/21.6 | 56.3 | BE | SB |  |
| TM2716B | 82762 | 750 x 1620 | 873 x 1743 | 85 | 21.6/21.6 | 59.9 | BE | SB |  |

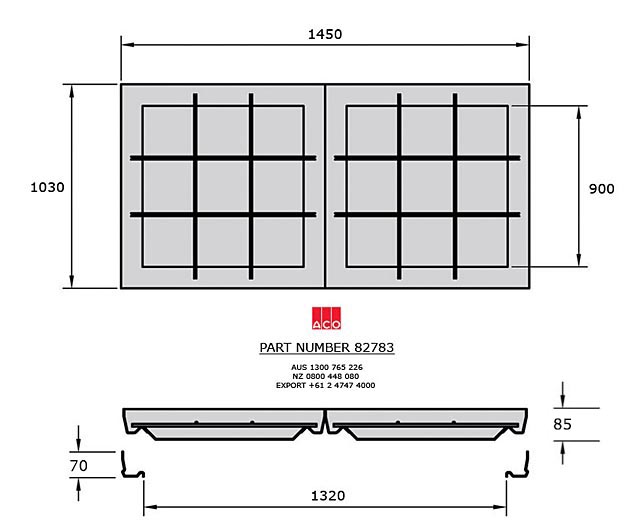

| TM2913B | 82783 | 900 x 1320 | 1023 x 1443 | 85 | 20.9/20.9 | 58.7 | BE | SB |  |
BIM Model
1. C/O = Clear opening O/A = Overall
2. Decorative Brass (BE) can be added - just specify BE.
3. Optional security locking bolts are available for security applications - specify Security Bolts (SB) after part no.
| Part No | Weight (kg) | JPG | |
|---|---|---|---|
| Universal short lifting key | 84306 | 0.40 | |
| Urbanfil®/Pavermate®: allen locking key | 84313 | 0.25 | |
